How a Planetary Gearbox Achieves High Load Capacity – Dual Bearing & Needle Roller Secrets

When it comes to demanding motion control systems, load capacity frequently becomes a deciding factor when engineers pick a Planetary Gearbox. Planetary Gearboxes that cannot accommodate high radial or axial loads will fail, requiring costly maintenance and repairs due to the resulting downtime. What exactly gives some planetary reducers the ability to accommodate higher loads without sacrificing precision? The answer lies in the design of the system: dual bearing support of the planet gears, and full needle roller bearings, combined with dual tapered roller bearings, at the output. In this article, we discuss how the design choices of Mingye Machinery's PAB series High Precision Planetary Reducer increase load capacity, transmission stability, and service life, with examples from the PAB series.

Why Load Capacity Matters in a Planetary Gearbox

Planetary Gearboxes must support shock loads and both radial and axial overhung loads caused by associated hardware, while also supporting continuous reversal of output shaft loaded torque. Insufficient bearing support will result in component deflections with poor contacts between the gears, increased backlash, and ultimate failure of the gear to function. High load capacity is especially important to facilitate:

•Control of position accuracy after impacts over many cycles.

•An ability to withstand external loads from robotic arms or control axes.

•An increased mean time between failures (MTBF) during continuous operations.

Once again, Mingye Machinery supports the planet gears and the output shaft in a wholly redesigned manner.

Disadvantages of Typical Planetary Gearbox Designs

In many typical planetary gearboxes, planet gears are supported by simple journal bearings or a circle of ball bearings. There are three main issues with this:

•Limited contact area: the bearings concentrate the support at one spot, leading to accelerated wear.

•Poor tolerance to misalignment: without a second bearing, planet gears tilt when a load is applied, causing a loss in the contact of the gear mesh.

•Low Stiffness: Bearings with lower stiffness allow for micro-deformations, which leads to an increase in backlash over time.

The same problems are found on output shafts supported by pairs of ball bearings. This design can be acceptable when only radial loads act on the bearings. However, this design quickly becomes a problem when both radial and axial loads are applied to the bearings, a situation that is common in many pick-and-place robots as well as a rotary table of a CNC machine.

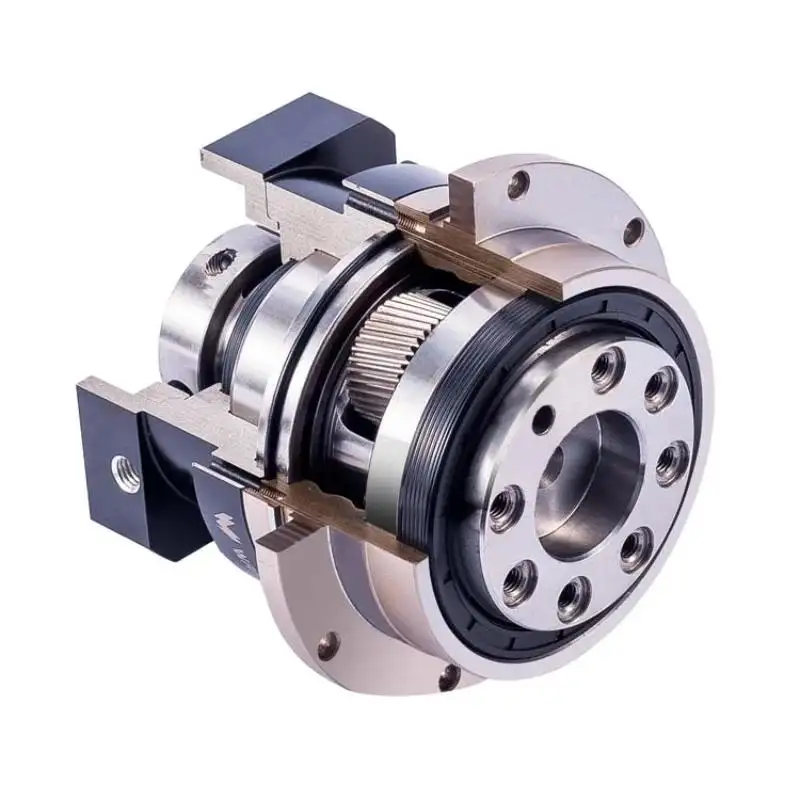

Dual Bearing Support for Planet Gears: Full Needle Roller Bearings at Both Ends

In the PAB series Planetary Gearbox by Mingye Machinery, each of the planet gears is supported at both ends by full complement needle roller bearings. The advantages of this design include:

•Better load distribution: needle rollers being line contacts as opposed to point contacts allow the load to be distributed across the entire width of the planet gear.

•Better rigidity when subjected to shock loads: with dual support, the planet gear cannot tilt, thus full contact of the teeth is maintained even with large jolts of torque.

•Less friction and heat: dual needle bearings as rollers generate less heat and friction in comparison to sliding bushings. This allows much greater and continuous rotational speeds.

•Space efficiency: needle rollers take up the same space as bushings with the same gear width.

Each planet gear in the PAB series rotates about a fixed pin which uses needle rollers. Because of the full complement, caged rollers are not used. This design increases the amount of torque because there is an increased number of load-carrying rollers.

Dual Tapered Roller Bearings on the Output Shaft: Handling Every Direction

The output shaft of a Planetary Gearbox often experiences complex loads. For instance, a belt-driven axis pulls radially, while an AGV wheel adds axial thrust during turning. Most gearboxes address these separately – but Mingye Machinery's solution uses dual tapered roller bearings in an opposed arrangement. This design provides:

•Simultaneous radial and axial capacity: Tapered rollers naturally handle combined loads without additional thrust bearings.

•Preload adjustability: The dual bearing set can be preloaded to eliminate play, further reducing backlash to as low as 1 arcmin (P0 grade).

•Greater Overhung Load Capacity: Tapered rollers have up to an 80% greater tolerance of overhung loads using the same envelope than angular contact ball bearings.

•Resistance to Variation in Temperature: The tapered roller geometry aids in maintaining a constant preload during expansion caused by an increase in temperature. This results in a change in stiffness in the bearing which helps maintain a constant stiffness of the overall transmission.

On the PAB series Planetary Gearbox, these bearings are sized to support not only the reducer's own torque but also external forces from the driven mechanism – a critical advantage for robotic joints and servo presses.

From Bearing Design to Real-World Performance

The combination of dual bearing support (full needle rollers on planet gears) and dual tapered roller bearings (on output shaft) directly translates into measurable performance gains. Users of Mingye Machinery's High Precision Planetary Reducer can expect:

•Higher permissible radial load: Up to 2–3 times that of conventional planetary gearboxes of the same frame size.

•Sustained low backlash: Even after millions of cycles, the bearing rigidity prevents gap-opening, preserving the 1–3 arcmin precision.

•Stable transmission under variable loads: A combination of helical gears and a stiff bearing system works cooperatively to dampen vibration and cut noise.

•Longer lubrication intervals: With deflection internal to the unit minimized, the oil film is less likely to break down; thus, intervals between grease (or oil) changes are extended.

Complementary Features That Boost Overall Reliability

While bearing design takes center stage, a motion control system's planetary gearbox design requires a broader focus. Several complementary design features in Mingye Machinery's PAB series are worth noting:

•Self-aligning input flange: This feature facilitates a fast connection of the motor. No special adapter is necessary, and there is no bearing stress due to misalignment.

•Helical gear transmission: Because helical gears are less likely than spur gears to induce vibration, dynamic loads on bearings are less.

•Compact, inline square housing: A cavity of sufficient thickness to bear heavy loads contains a space-efficient design.

•Adjustable sizes: The gearbox length and/or flange pattern can be changed to fit a type of motor without any compromises in bearing support.

Conclusion: The Ideal Bearings for a Superb Planetary Gearbox

Load capacity is a key factor in the mechanical design of a Planetary Gearbox. For instance, in the PAB series High Precision Planetary Reducer produced by Mingye Machinery, the planet gears are supported by full needle roller bearings. Moreover, the output shaft is supported by two sets of tapered roller bearings. Thus, the PAB series has improved torsional rigidity, reduced backlash, and increased durability.

The PAB series would be a highly precise and durable solution for the SCARA robots, CNC tool changers, or even the packaging machines. For the mechanical designer who has to choose a Planetary Gearbox that will operate reliably for extended periods of time, the PAB series is an excellent choice.

For the engineer who is looking for a Planetary Gearbox that has a high load capacity and a high level of precision, the dual bearing support design should be specified.

 FAQs

 Q1: What is the main advantage of dual bearing support in a Planetary Gearbox?

 A: It allows full contact of the gears and increases the stiffness of the system by minimizing the tilting of the planet gears.

 Q2: In what way do full needle roller bearings enhance the load capacity?

 A: By forming a large contact line instead of a point which thereby distributes the wear.

 Q3: Why are dual tapered roller bearings used on the output shaft?

 A: They are able to support both radial and axial loads while allowing for a preload to be set that minimizes backlash.

 Q4: Does a Planetary Gearbox that has dual bearing support deal well with shock loads?

 A: Yes, the rigid bearing arrangement would deal well with the shock while preventing a misalignment of the gears or an increase in backlash.

Q5: Is there an impact on the gearbox's precision because of high load capacity?

A: No, high load capacity is achieved with heavy bearings while maintaining low backlash (e.g. 1 arcmin).
