High Precision Planetary Reducer

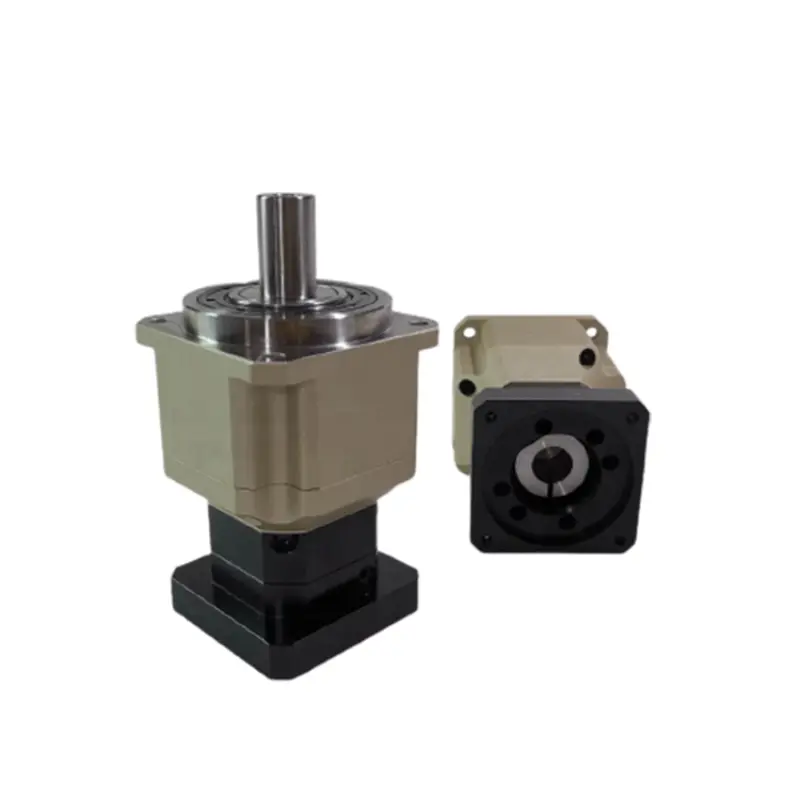

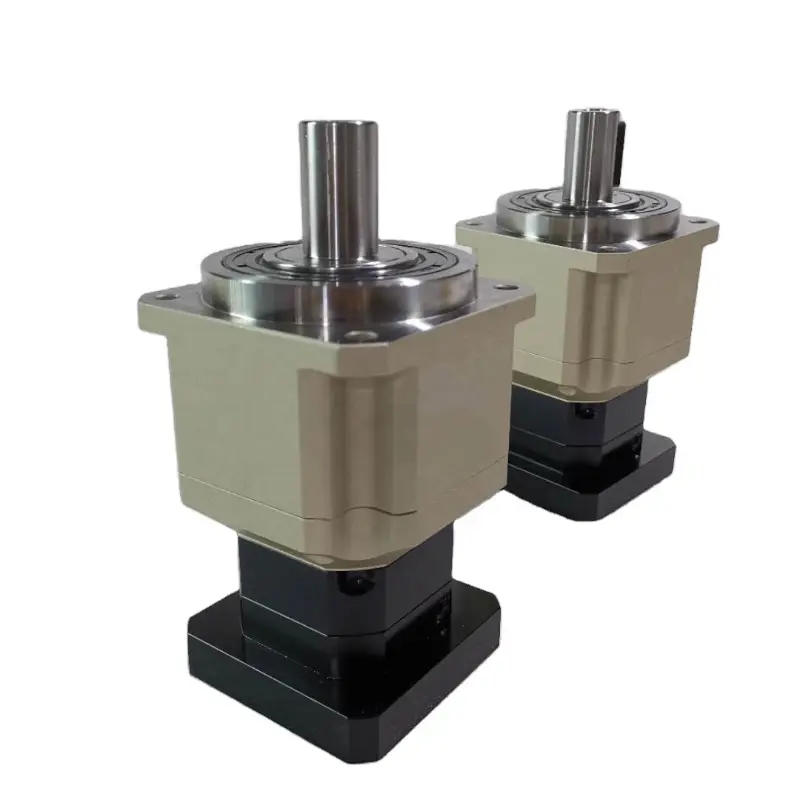

PAB series planetary reducer features high precision, low backlash, and strong torsional stiffness for demanding motion control systems. Its compact inline structure supports space-efficient installation, while dual bearing support improves load capacity and transmission stability. The self-aligning input flange allows quick and accurate motor connection. Helical gear design enhances contact conditions, helping reduce vibration and maintain smooth operation. This configuration supports consistent performance and reliable torque transmission in automation and industrial machinery.
Product Features
🟢 High Precision & Low Backlash — Available in P0 and P1 precision grades with backlash as low as 1 arcmin, ensuring accurate motion control.
🟢 High Torsional Stiffness — Planet gears are supported by full needle roller bearings at both ends, improving rigidity and transmission stability.
🟢 Strong Bearing Capacity — The output shaft is supported by dual tapered roller bearings, providing higher load capacity and durability.
🟢 Compact Inline Design — Square housing and inline structure reduce installation space and improve system integration.
🟢 Fast Motor Connection — Self-aligning input flange allows quick and stable connection with different motor shafts.
🟢 Long Service Life — Helical gear transmission ensures smoother operation, lower noise, and extended operating life.
🟢 Customizable Dimensions — Gearbox dimensions can be customized to match different motor types and application requirements.
Planetary Reducer For Precision Motion Control Systems
Planetary reducer delivers controlled speed reduction and stable torque output in systems requiring accurate motion control. Planetary reducer uses a central sun gear, multiple planet gears, and a ring gear to distribute power evenly across the transmission system. This arrangement supports low backlash and high torsional stiffness, allowing stable performance during continuous operation.
Planetary Gear Structure For High Precision Transmission
- Multi-gear arrangement distributes load across the system
- Low backlash design supports accurate motion control
- Inline structure supports compact system integration
- Dual bearing support improves load capacity and stability
The transmission process begins with the input shaft driving the sun gear, which transfers motion to the planet gears. These gears rotate within the ring gear while distributing load across multiple contact points. This interaction allows stable torque output while maintaining controlled speed. The even load distribution helps reduce stress on individual components and supports consistent mechanical performance.
During operation, precision-machined helical gears improve contact conditions, which helps reduce vibration and supports smooth motion. At the same time, the dual bearing support structure enhances rigidity and maintains alignment between components. This contributes to stable transmission performance under varying load conditions.
The housing protects internal components while maintaining lubrication conditions for continuous operation. The compact inline structure simplifies installation and supports integration with different motor systems. Planetary reducer works well in automation equipment and precision mechanical systems where stable motion control and compact design are required.
Product Description
Industry Applications
-
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors -
Rubber & Plastic Machinery
Extruders, mixers, calenders, processing lines -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mixing & Agitation Equipment
Mixers, agitators, blenders, industrial processors
