Planetary Gear Reducers

Planetary Gear Reducers For High Precision Transmission Systems

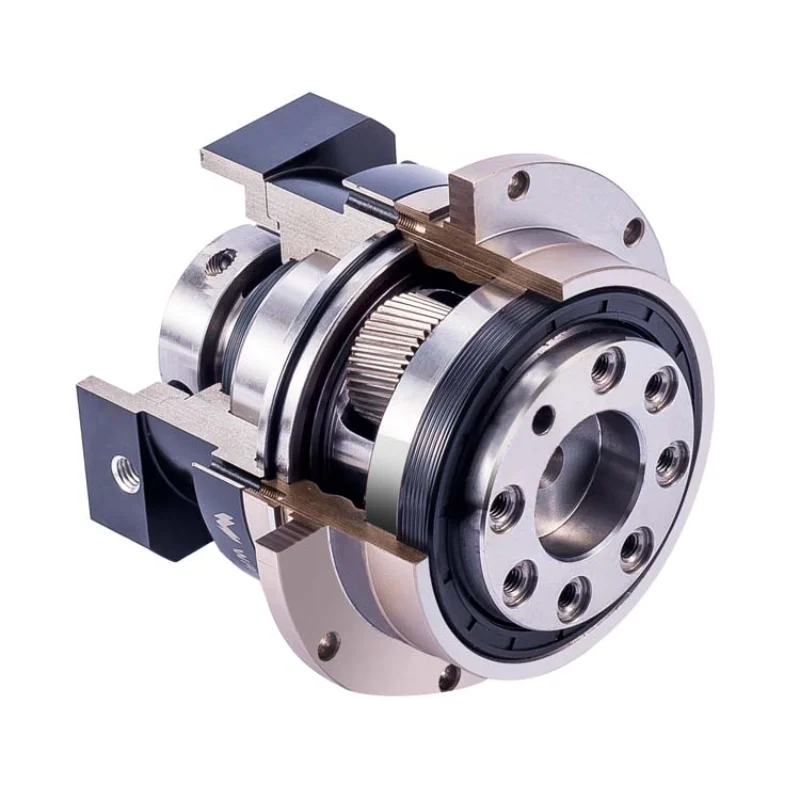

Planetary gear reducers are designed to provide controlled speed reduction and stable torque output in compact transmission systems. The internal structure consists of a central sun gear, multiple planetary gears, and an outer ring gear, allowing rotational power to be distributed evenly across the gear set. This configuration supports applications where space is limited and motion control must remain consistent over extended periods.

Planetary Gear Structure For Compact Torque Transmission

• Multi-gear engagement distributes load across the transmission system
• Controlled speed reduction supports stable motion output
• Compact design supports installation in limited spaces
• Gear interaction supports smooth and stable transmission

The reduction process is achieved through coordinated rotation between the sun gear, planetary gears, and ring gear. This arrangement allows high torque output while maintaining controlled rotational speed. Load sharing across multiple gears reduces stress concentration, supporting stable mechanical performance during continuous operation.

The enclosed housing protects internal components from external factors such as dust and moisture. Internal lubrication supports smooth gear interaction, helping maintain stable operating conditions over extended service periods. This structure also supports reduced maintenance frequency during long-term operation.

Planetary gear reducers are widely applied in systems requiring compact design and precise motion control. Their structure supports use in automation equipment, positioning systems, and mechanical assemblies where controlled speed and torque are required. The combination of compact size and stable transmission allows integration into systems where performance and space must be balanced.
