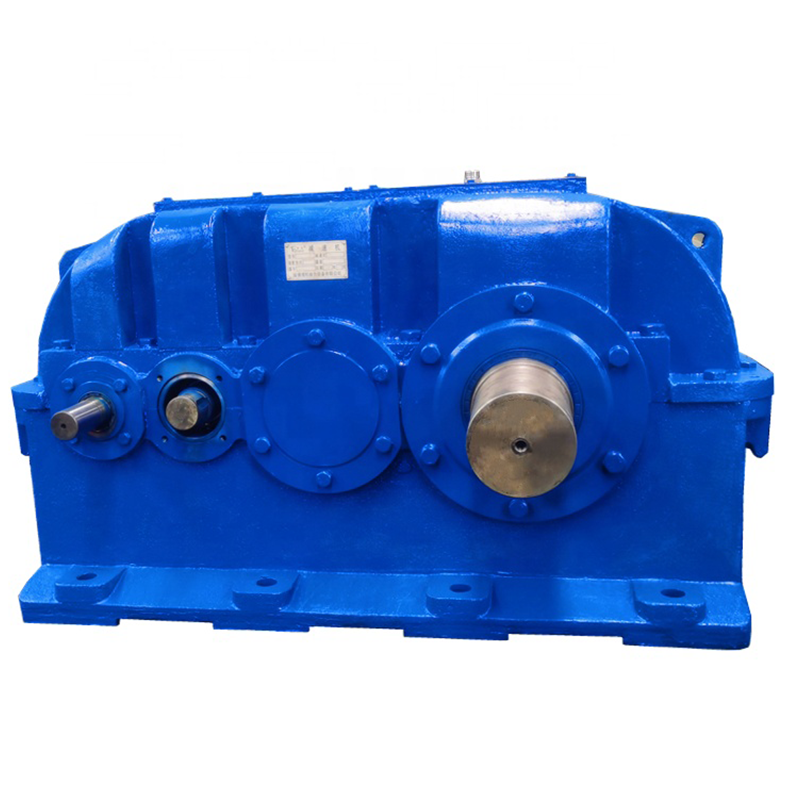

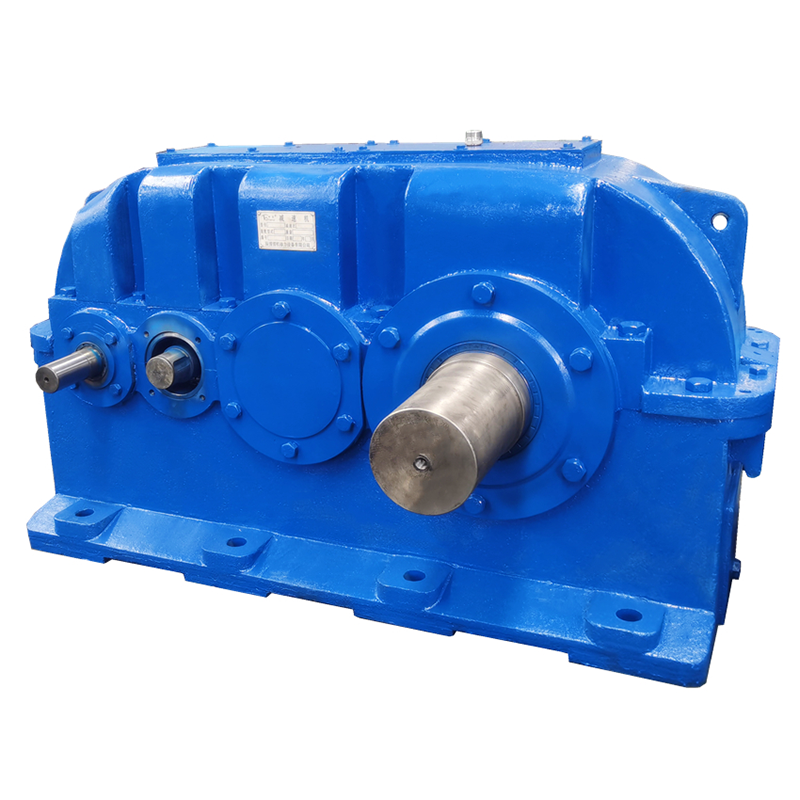

Cylindrical Gear Reducers (ZDY / ZLY / ZSY / ZFY / DBY / DCY Series)

Cylindrical Gear Reducers For Parallel Shaft Transmission Systems

Cylindrical gear reducers are designed to provide controlled speed reduction and stable torque output in parallel shaft transmission systems. The internal structure consists of spur or helical gears arranged on parallel shafts, allowing direct transfer of rotational motion with consistent transmission characteristics. This configuration supports applications where stable motion and precise speed control are required over extended operating periods.

Parallel Shaft Gear Structure For Stable Motion Transmission

• Parallel shaft arrangement supports direct power flow
• Controlled speed reduction supports consistent motion output
• Compact housing supports flexible installation conditions
• Gear engagement supports smooth and stable transmission

The reduction process is achieved through gear meshing between parallel shafts, where rotational speed is reduced while torque output is increased. This arrangement supports steady motion under varying load conditions, helping maintain stable mechanical performance. Load distribution across gear teeth reduces stress concentration, supporting reliable operation over time.

The enclosed housing protects internal components from dust, moisture, and external influences. Internal lubrication supports smooth gear interaction, helping maintain stable operating conditions and reducing wear during long-term operation. This structure also supports reduced maintenance frequency.

Cylindrical gear reducers are widely applied in systems requiring parallel shaft transmission and controlled motion. Their structure supports use in conveyor systems, lifting equipment, and processing machinery. The combination of direct transmission and stable output allows integration into systems where performance and structural simplicity must be maintained.
