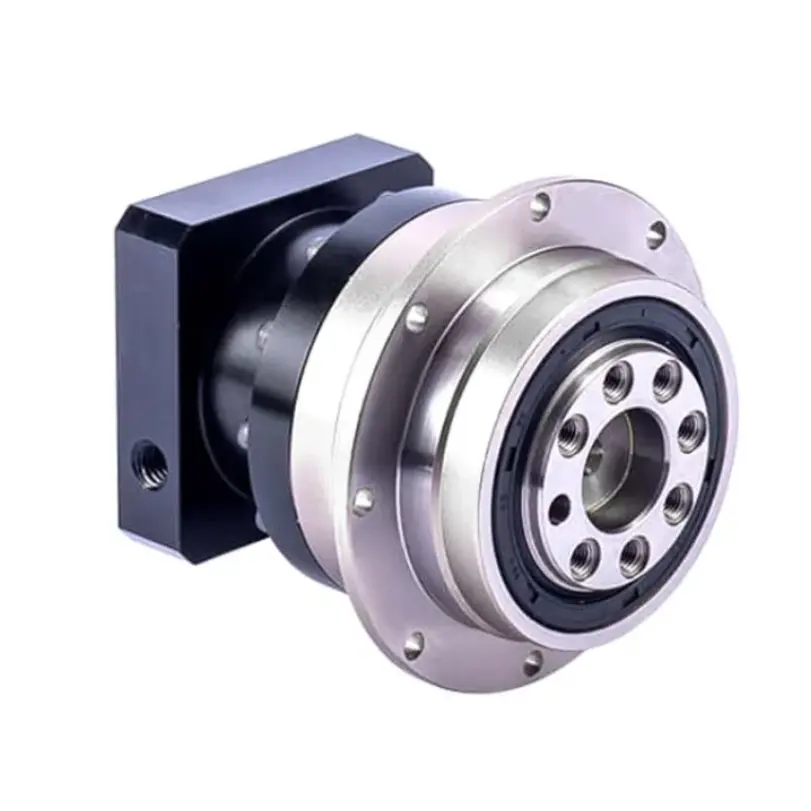

Servo Planetary Gearbox: Smart Power behind Precision Automation

The contemporary industries require speed, accuracy, and reliability. Whether it is robotic arms or CNC motion systems, all machines require a small but powerful transmission system capable of providing smooth motion without compromising performance. It is here that a planetary gearbox is needed.

• A servo planetary gearbox is more than a simple speed reducer. It is a precision engineering gearbox that is aimed at enhancing the transmission of torque, rotational accuracy, and synchronization of motion in industrial automation systems. Be it packaging automation, conveyor drive systems, automated machinery, or industrial robotics, the appropriate gearbox can radically enhance machine efficiency.
• At Mingye, the industrial transmission solutions are tailored to meet the challenging applications with reliable power transmission equipment and advanced planetary gear transmission systems. Their planetary reducer solutions are popular in industrial automation gearbox applications where performance and durability are the most important.

How a Servo Planetary Gearbox Works

This planetary gear drive system comprises three significant parts:

•          Sun gear

•          Planet gears

•          Ring gear

The sun gear is located at the center and conveys the movement to several planet gears. These gears turn within the ring gear and evenly spread the load throughout the system. This special gear train system produces great transmission efficiency and torque multiplication.

A servo planetary reducer used in industrial automation, unlike traditional gearboxes, distributes force over several points of contact. This minimizes wear, enhances dynamic load performance, and mechanical power transfer.

The outcome is a very efficient gear reducer that provides:

•          Better rotational stability

•          Lower vibration

•          Superior backlash control

•          High load capacity

•          Smooth rotary motion control

The planetary gearbox of the AC servo motor system is particularly useful since servo motors need rapid acceleration, accurate stopping, and positioning. The gearbox assists in maximizing the speed reduction mechanisms and preserving the compatibility of the servo drives.

The Importance of Low Backlash Technology

Backlash is the slight movement of gears before engagement. Even a slight error in positioning can impact the quality of the products in high-precision applications. A low backlash planetary gearbox is developed to reduce this motion. Servo-compatible gearbox systems of high quality can have backlash levels down to 3 to 8 arc minutes.

This is very vital to:

•          Robotic motion control

•          CNC routers

•          Precision manufacturing systems

•          Medical equipment

•          Automated positioning systems

•          Printing machines

Low backlash technology enhances the accuracy of angular positioning and provides smooth motion control gear system operation.

Characteristics of Contemporary Servo Planetary Gearboxes

The contemporary industrial planetary drive systems are designed using the latest materials and accurate machining techniques. These gearboxes are intended to be used in industrial operations in harsh conditions. The following are some of the most significant technical specifications:

• High Torque Output

A planetary reducer with high torque can produce high torque levels, but with a small mechanical design. The gearbox has several planetary gear steps that enable it to spread the force evenly, enhancing durability and performance.

Numerous industrial planetary reduction gearbox systems have a torque range between 20 Nm and several thousand Nm, depending on the application.

• High Transmission Efficiency

The majority of high-quality servo transmission systems provide efficiency ratings of 94-98%. This saves energy and enhances operational savings. Planetary gear transmission is also efficient in minimizing heat production when it is in constant use.

• Small Gear Transmission Design

A small gear transmission system is used that does not require much space in installation, but does not compromise on output performance. This is particularly applicable in robots and automated machines where machine layouts are compact.

• High Speed Rotation Support

A high-speed servo planetary gearbox is capable of running at input speeds of over 3000 RPM with accuracy in shaft positioning and consistent output.

Servo Planetary Gearboxes in Industry

This gearbox technology is used in almost all of the current automation industries.

• Servo Planetary Gearbox for Robotics

Robotic systems require accuracy of movement and speed. This planetary gearbox for robotics delivers excellent motion synchronization and torque transmission. Robotic applications have the advantage of:

•          High positional accuracy

•          Smooth acceleration

•          Reduced vibration

•          Compact installation

•          High torque density

Industrial robot systems with planetary gearboxes also enhance repeatability in automated production systems.

• CNC Router Servo Planetary Gearbox

Exceptional precision gearbox engineering solutions are needed in CNC systems. Machining accuracy can be destroyed by the smallest positioning errors.

An accurate servo reducer enhances:

•          Cutting precision

•          Surface finish quality

•          Motion stability

•          Spindle control

The low backlash planetary gearbox design is particularly useful in high-speed CNC motion systems.

• Packaging Machine Servo Planetary Gearbox

Precision motion control gearbox systems are important in packaging automation equipment. It is used in packaging machines, applications include:

•          Labeling systems

•          Filling machines

•          Wrapping equipment

•          Pick and place robots

These systems assist in ensuring uniformity in the handling of products and speed in production.

• Servo Planetary Gearbox to Conveyor Systems

Conveyor systems demand robust industrial gear reduction systems that can be used to deal with constant loads.

An automation system servo gearbox enhances:

•          Speed consistency

•          Load handling

•          Energy efficiency

•          System durability

Benefits of Using a Custom Servo Planetary Gearbox

Most industries have unique machine requirements, which need specialized solutions. It can offer:

•          Specific gear ratios

•          Custom flange designs

•          Enhanced torque capacity

•          Special shaft configurations

•          Improved environmental protection

OEM planetary gearbox products are particularly helpful to machine builders and industrial automation manufacturers.

Conclusion

An efficient servo planetary gearbox can entirely revolutionize the effectiveness and accuracy of the industrial automation systems. These gearboxes are used in robotics and CNC motion systems, packaging automation, and conveyor drive systems to provide the optimal combination of torque, speed, and precision.

When your business requires a solution of high-quality motion control gear systems that are highly durable and engineered with precision, then consider the advanced gearbox solutions that Mingye has to offer. The appropriate gearbox can now be the key to accelerated production, smoother functioning, and industrial prosperity tomorrow.
