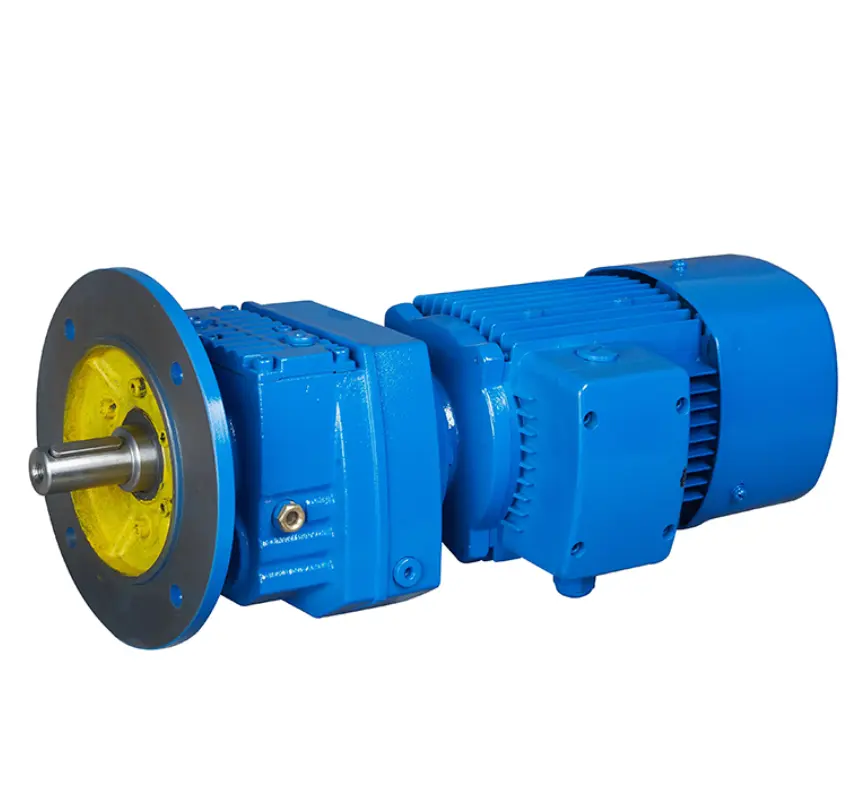

The Inline Helical Geared Motor: Driving Efficiency in Modern Industrial Systems

Today, the inline helical geared motor is one of the most reliable products in today's modern industrial drive technology. This precision-engineered product is capable of heavy-duty operations for prolonged periods of time, with a strong torque capacity. Whether it's on conveyor systems or in fully automated factories, this motor is playing an unnoticeable yet powerful role in ensuring smooth and stable production while ensuring efficient energy consumption.

This system is an electric motor that mounts a helical gear motor in a straight inline arrangement. This compact design provides better alignment, less lost energy, and smoother torque transmission than many traditional gear designs.

Understanding of the Motor and Its Working Principle

An inline helical geared motor is a geared induction motor where the motor shaft and gearbox are aligned on the same axis. In this design, the efficiency of power transmission is enhanced, and mechanical stress is reduced. This is achieved by means of a helical gear tooth system, which is the teeth that engage each other gradually. This makes the rotation smoother, and vibration is minimized when using spur gears. The system essentially has three principal functions:

•          Transfers the high-speed rotation of the motor to output at a controllable speed

•          Increases torque using a gear reduction mechanism

•          Runs smoothly by keeping gears engaged at all times

This is a good industrial gear motor unit for heavy-duty applications

The Inline Helical Gear Motor has several key construction features:

• The most important thing about a geared motor is its structure.
• All the components are designed to be durable and functional.
• The integration of the motor and gearbox.
• A small unit of motor and gearbox that operates as a single unit.
• This makes installing easier and helps with the accuracy of alignment.

The Construction of a Parallel Shaft Helical Gearbox

The uniform load distribution of the parallel shaft helical gearbox also guarantees longer lifespan and improved torque output.

Shaft-Mounted Gear Motor Efficiency

Mechanical efficiency optimization with direct power transfer minimized energy loss by using the shaft alignment system.

Compact Geared Drive System

It has a space-saving design that is suitable for today's factories, which are often constrained in space.

Applications of the Inline Helical Geared Motor in Industrial Use

The demand for industrial geared motors is growing rapidly due to automation and smart manufacturing.

Conveyor System Applications

The most popular of its applications is in conveyors. A geared motor for a conveyor system ensures smooth and controlled movement of materials.

Material Handling Equipment

A geared motor for material handling is used in a warehouse or logistics environment to move heavy loads at a constant torque.

Industrial Machinery Operations

It is generally used as an inline helical gear motor in industrial machinery such as a crusher, a mixer, and a packaging machine.

Automation Systems

Nowadays, it is adopted by modern factories for use in the automation system with a robotic arm and precision equipment, such as an inline helical motor.

Optimizing Operational Output: Technical Performance and Engineering Strength

This engineering is based on durability and efficiency.

The key technical advantages are:

• High power transmission capability of the torque transmission system
• Better output control with rotational speed reduction
• Good load-carrying capacity of heavy industries.
• Optimization of mechanical efficiency is achieved at high levels.
• Improved operating efficiency and quietness.

This system is capable of sustained industrial operation without variations in performance.

Various Configurations are Suitable for Different Industrial Needs

The AC geared motor has a stable performance and energy-saving advantage, so it can be widely used in manufacturing plants.

Heavy Duty Inline Helical Gear Motor

Heavy-duty geared motor is robust enough for high torque applications in industries such as mining and steel.

High Torque Inline Helical Geared Motor

The variant is optimized for the highest load handling capacity and is suitable for heavy conveyor systems.

This is an Industrial Inline Helical Gear Motor

A solution that applies to several industries and provides uniform performance consistently and reliably. In today's modern industry, the Geared Motor plays a vital role.

Strategic Advantages and Growing Popularity of the Integrated System

Smooth Transmission of Electricity is Essential

The integrated gear reducer motor design is made with minimal energy loss and maximum output.

Smooth and Quiet Operation

It can be used in the indoor industrial environment because helical gears have less noise.

Long Service Life

Hardened steel gears are used for the mechanical drive unit, providing durability.

Compact and Flexible Design

The compact geared drive system is easily integrated into various configurations of machines.

Low Maintenance Requirement

The sealed housing reduces lubrication needs and increases uptime.

Comparative Advantages: Inline Helical Geared Motors Vs Alternative Gear Systems

The inline helical gear stands out in comparison with worm or bevel gear systems.

• The reliability is enhanced compared with worm gear systems
• An increase in torque density as compared to Spur gears
• Improved continuous load stability
• More reliable mechanical drive unit

It, therefore, makes it a favorite choice for industries that need continuous production flow.

Why Helical Gear Design Matters – Engineering Insight

The secret to performance is the design of the teeth that helical gears have. As opposed to straight-cut gears, helical gears engage slowly. This decreases shock loads and adds smoothness.

From an engineering perspective:

• The contact ratio is increased, which results in better load sharing.
• There is a substantial decrease in noise levels.
• The distribution of stress is more even
• Over time, the wear of the gear is reduced.
• This will help to enhance the system efficiency and longevity.

This is a Selection Guide for an Inline Helical Geared Motor

The right motor is key to performance. Take the following into account:

• Required torque output
• Class and load type, as well as weight
• Speed reduction ratio

One of the following two uses: continuous or intermittent use. The environmental conditions can be considered, such as dust, moisture, and temperature.

Long-Term Performance Tips for Maintenance

To guarantee smooth operation:

• Regularly inspect and maintain lubrication levels
• Check the shaft alignment system on a regular basis.
• Do not exceed rated capacity
• Clean and dust the motor housing
• Track vibration to detect potential problems early in the process.
• Good maintenance boosts efficiency and avoids downtime.

The Industrial Value and Strategic Role of Geared Motors in the Automation Era

The inline gearbox motor is a key component in boosting production efficiency in today's automation era. For industries, compact, powerful, and energy-efficient systems are required. All these requirements are fulfilled by the geared induction motor design. It can be used for continuous operation while maintaining stability and precision.

It can be a packaging line or a heavy-duty production plant; this system is the foundation of the industrial drive system architecture of these days.

Conclusion:

The inline helical geared motor is more than just a mechanical component. A comprehensive product offering for industries requiring strength, stability, and efficiency in every rotation. With top-tier precision helical gears and an advanced gear reduction system, it is one of the most reliable options for modern manufacturing systems.

When your operation requires a robust and reliable drive system, the solution is engineered to meet real challenges – and that's what Mingye can offer you. Enjoy our selection today at Mingye and feel safe to enhance your production line.
