Understanding the Role of Extruder Drive Gearbox in Industrial Machinery

The extruder drive gearbox is the backbone of any extrusion system. It's not only a mechanical unit, but it's also a power transmission unit for which it can ensure smooth, stable, and controlled operation of the extrusion machine.

Put in simple terms, it transforms the speed of the motor into torque that can be used. This torque is then applied to extrude the raw material through the barrel to produce continuous items such as plastic pipes, films, rubber sheets, and polymer profiles.

Today's industrial manufacturing relies heavily on non-stop production with no breakdowns, and that is because it relies heavily on a heavy-duty extruder gearbox. It may be a plastic gearbox or a polymer processing drive system, but performance and reliability are the most important things.

Why is an Extruder Drive Gearbox Essential?

Without the stable performance of an industrial extruder gearbox, an extrusion line can't operate. It serves as a mechanical connection between the motor and the screw system.

This system ensures:

• Use smooth torque transfer gearboxes to reduce gearbox wear.
• The speed reduction gearbox output is controlled.
• A stable extrusion machine drive unit operation.
• Vibration and overload-free continuous production

Extrusion is where even a small amount of torque can have an impact on product quality. Hence, industries are opting to use the high torque extruder drive gearbox of plastic machines for accuracy and consistency.

Technical Working Principle

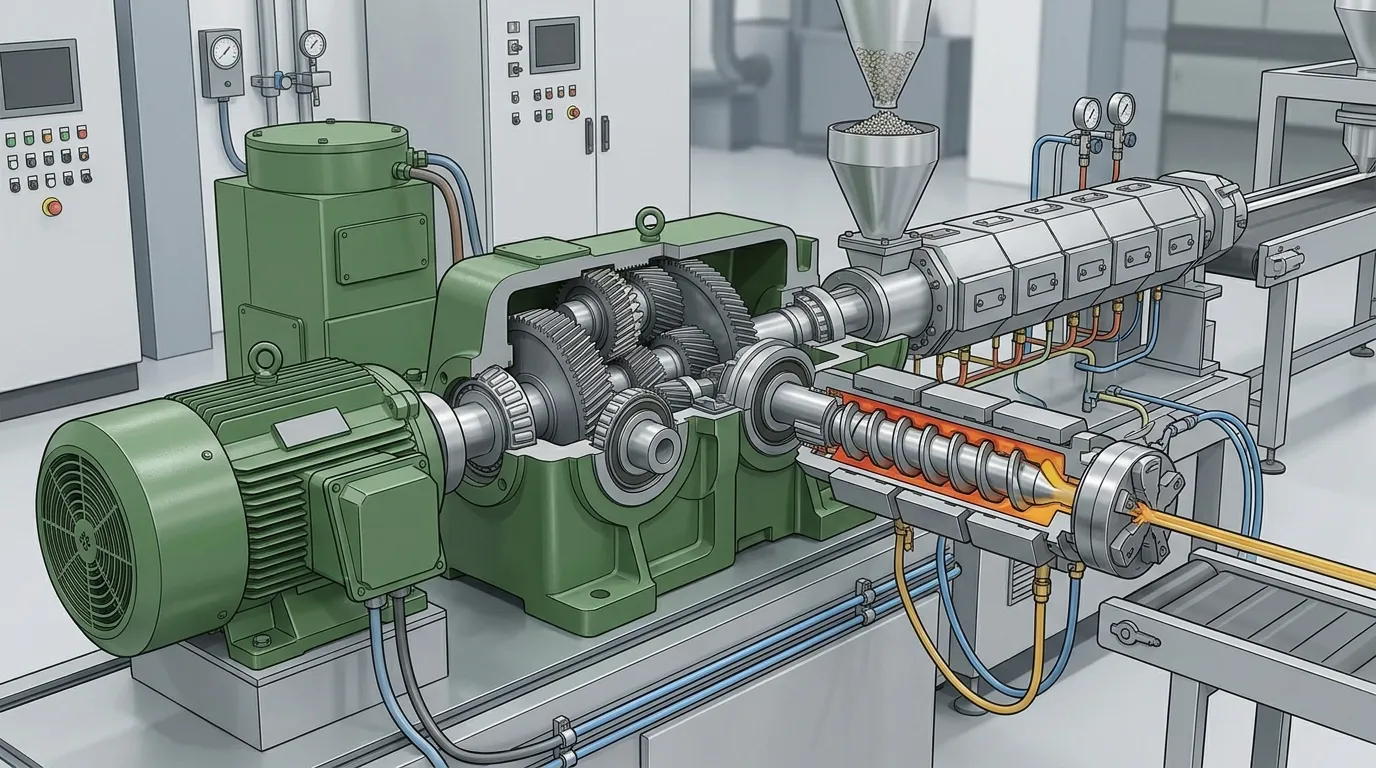

The working of an extruder gearbox is based on mechanical energy conversion. It is driven by a high-speed, low-torque electric motor input and produces a low-speed, high-torque output.

Important Phases of a Working Life are:

1. Power Input Stage

The power source of the gearbox system is the motor. This is the beginning of the extrusion drive system.

2. Gear Reduction Stage

A helical gear reduction system or planetary gear set is used to reduce speed and increase torque in the gearbox.

3. Torque Transmission Stage

The output shaft sends high torque to the extruder screw. This is known as a heavy-load gear transmission.

4. Extrusion Output Stage

The screw pushes the raw material to run a cycle of the extrusion machine.

This is a simple yet powerful mechanism that allows high-efficiency continuous production.

Types of Extruder Drive Gearboxes Used in Industries

Depending on the load and material type, different gearboxes can be used in various industries.

Single Screw Extruder Gearbox

• Popular basic extrusion system.
• It is dependable and inexpensive.

This type is employed in the following areas:

• Plastic pipe production
• Sheet extrusion

The purpose of the course is to introduce the student to basic polymer processing equipment drive systems.

Twin Screw Extruder Gearbox

This system is intended to be used for further processing. It offers improved mixing and enhanced production.

Planetary Extruder Gearbox

A compact and powerful system used in high torque applications. It has a great load distribution.

Helical Gear Extruder Gearbox

This type is characterized by its smooth operation and low noise. It makes the gearbox performance much better, especially in terms of mechanical efficiency.

Key Characteristics of Industrial Extruder Gearbox Systems

A contemporary single-screw extruder gearbox is created for longevity and accuracy. Some of the key features are:

• Capable of continuous use with high output torque
• High-quality structure in heavy load situations
• Low vibration and noise performance:
• Top fuel efficiency for a long-life lubrication system.
• High mechanical efficiency gearbox design
• Compact design for convenient installation

The characteristics make it ideal for continuous production extrusion lines where downtime is not acceptable.

Engineering Design of Extruder Drive Gearbox

This system has a very sophisticated engineering. Contains components and parts that have been precision-machined and heat-treated.

High Torque Power Transmission

A gearbox that is designed to cope with extreme loads. Assures consistent torque in peak production.

Rotary Motion Conversion System

Transforms motor rotation at high speed to slow and controlled screw action.

Heavy Load Gear Transmission

Capable of resisting the pressure of viscous substances such as molten plastic and rubber mixtures.

Applications of Extruder Drive Gearbox in Industry

The extrusion drive gearbox is an important component in various industries.

Plastic Industry

Applications include the manufacture of pipes, sheets, and films.

Polymer Processing Industry

An indispensable tool for mixing and forming polymer materials.

Rubber Industry

Applicable to rubber extrusion systems to make seals, belts, and profiles.

Food Processing Industry

Applying to food extrusion machines, snacks, and pellets.

Chemical Industry

Allows the continuous processing of chemical compounds.

Why Energy Efficiency is Important in Extruder Gearboxes

One of the significant issues in the manufacturing process is energy consumption. An energy-efficient extruder drive gearbox with a good design can minimize power loss and improve output.

Benefits include:

•          Lower electricity consumption

•          Reduced operational cost

•          Better heat management

•          Longer machine lifespan

In addition, energy efficiency has a beneficial effect on the sustainability of industrial production systems.

Manufacturing of Custom Extruder Drive Gearbox

Each production line is unique in nature. It is for this reason that many industries opt for a custom gearbox manufacturer.

Customization allows:

•          Specific torque ratings

•          Different gear ratios

•          Modified shaft design

•          Application-based housing structure

This flexibility makes it more compatible with industrial machines.

Maintenance and Durability Factors

To achieve the long service life of an extruder gearbox that is designed for continuous service, it is important to perform proper maintenance.

Maintenance tips:

•          Regular lubrication checks

•          Monitoring temperature levels

•          Checking for correct alignment with the motor

A good system minimizes the likelihood of failure and provides better stability of performance.

The Advantage of Mingye Solutions

Mingye is an engineering combined with reliability and emphasizes providing high-performance industrial gear products for the production problems occurring in the real world.

Our gearbox systems are designed for:

•          Heavy-duty industrial use

•          High torque extrusion applications

•          Continuous production environments

•          Long-lasting mechanical efficiency

Precision design, high-quality materials, and optimized performance for modern extrusion systems.

Conclusion:

The extruder drive gearbox is more than just a component of a machine; it is the backbone of the modern industries of extrusion. It guarantees smooth torque flow, stable output, and uninterrupted manufacturing throughout the plastic production process to polymer processing. Industrial sectors can benefit from improved efficiency and reduced operational costs with the assistance of advanced engineering solutions, such as helical gear reduction systems and planetary gear reducers. We offer quality gearboxes designed for sustained industrial success.

Enhance your extrusion experience with Mingye. Find solutions that are built with precision that combine power, efficiency, and durability. Opt for Mingye and enjoy the power of engineering to drive your manufacturing with limitless possibilities.
