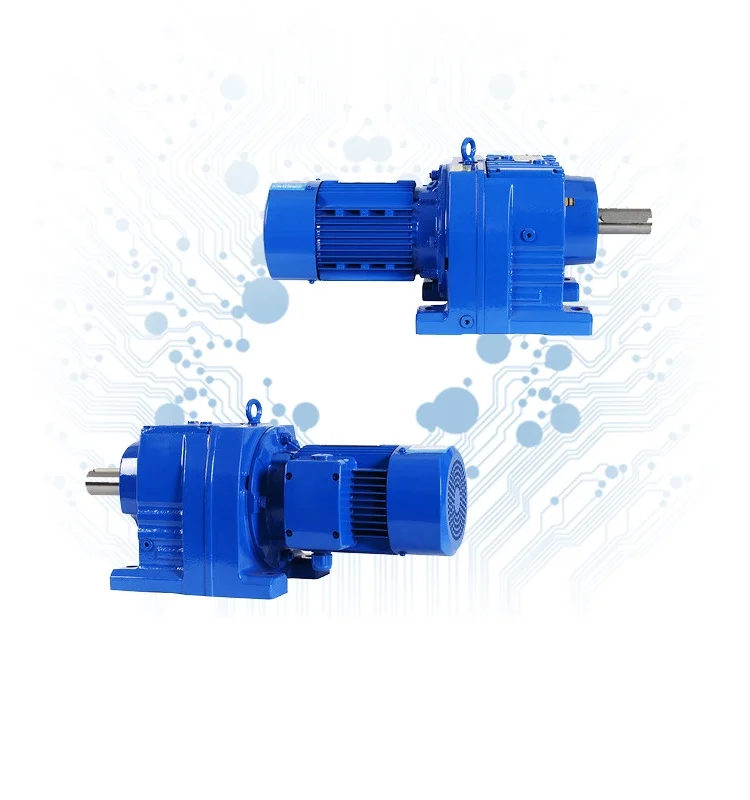

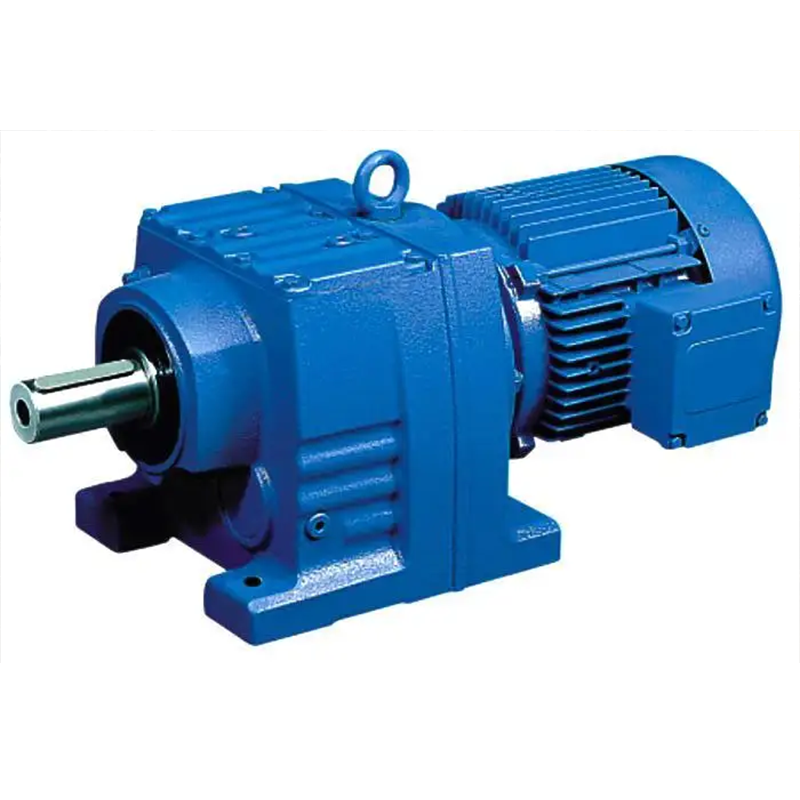

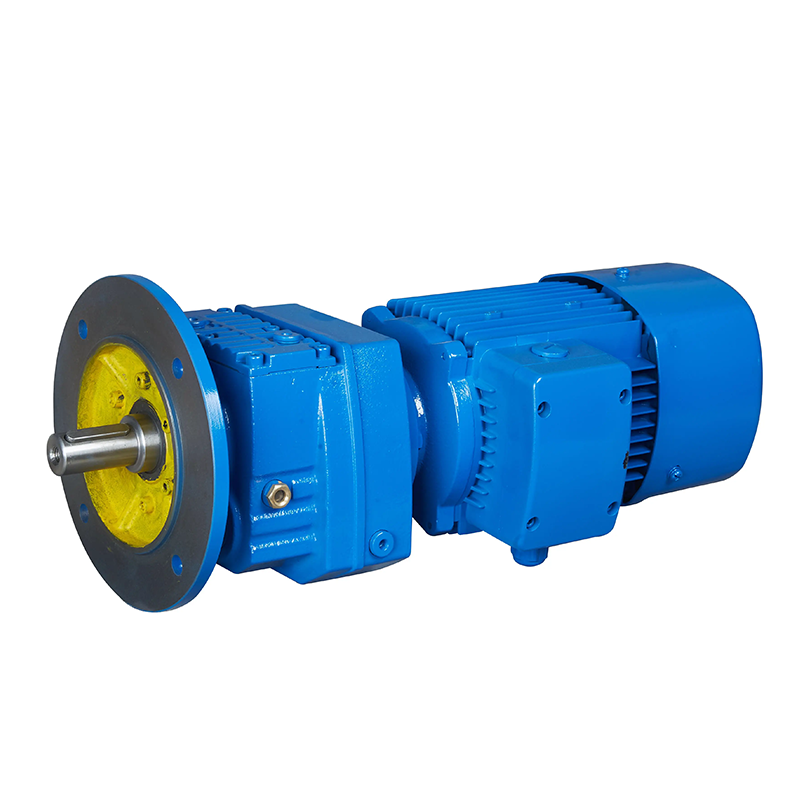

R Series Helical Gear Motor
R series helical gear motor features a modular structure designed for flexible transmission solutions across different system layouts. It supports multiple motor combinations and installation positions, allowing easy integration. The helical gear arrangement improves contact between gear teeth, which helps reduce vibration and maintain smooth operation. At the same time, the structure supports continuous operation. This configuration maintains stable torque output under varying load conditions in industrial drive systems.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢 Modular & Flexible Design – Multiple motor combinations, installation positions, and structural schemes; finely graded transmission ratios for diverse operating conditions.
🟢 High Performance & Reliability – Hardened gears, forged steel materials, and rigid cast iron housing ensure durability, high overload capacity, and power up to 132 kW.
🟢 Energy Efficient & Low Noise – High efficiency up to 95%, minimal vibration, and reduced operational noise.
🟢 Precision Engineering – Shafts and bearings aligned with tight tolerances; fully integrated helical gear and motor assembly for mechatronic solutions.

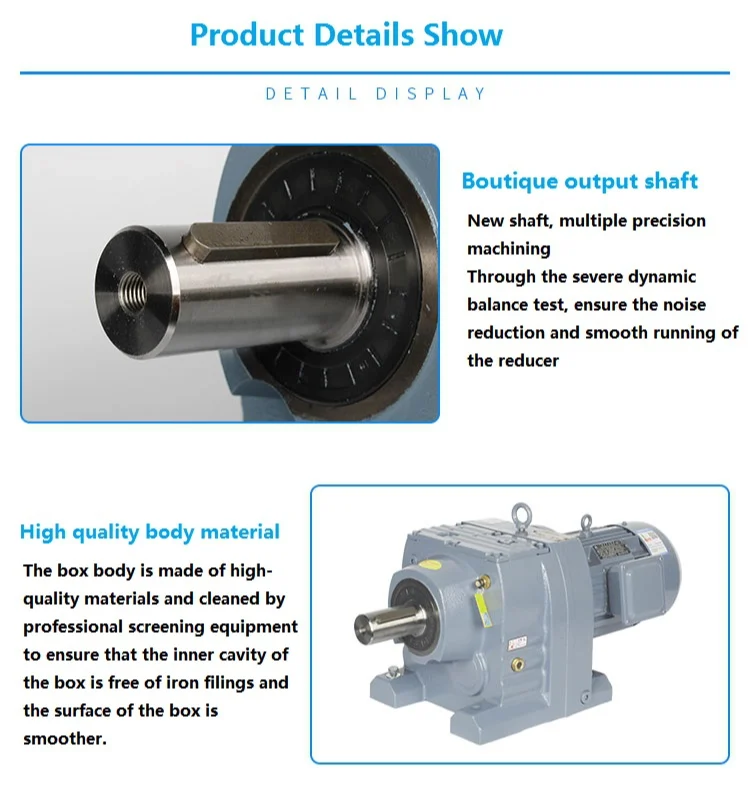

🟢 Premium Body Material – Box body precision‑cleaned to remove iron filings; smoother internal surface improves assembly fit and longevity.
🟢 Precision Output Shaft – High‑accuracy machining and dynamic balance testing ensure reduced vibration, low noise, and smooth running.
Helical Gear Motor For Modular Drive Systems
Helical gear motor delivers controlled speed reduction and stable torque output through an integrated transmission structure. It uses a modular concept that supports multiple motor combinations and flexible installation positions, allowing adaptation to different mechanical layouts. The helical gear arrangement enables gradual tooth engagement, which helps maintain smooth motion and reduce vibration during operation.
Helical Transmission Structure For Flexible Drive Configuration
- Modular design supports multiple mounting arrangements
- Helical gears improve smooth transmission performance
- Wide ratio range supports different operating conditions
- Integrated structure supports compact system layout
The transmission process begins when the motor drives the internal gear train, transferring rotational motion through progressive engagement between gear teeth. This interaction reduces speed while increasing torque output, allowing controlled motion across varying load conditions. The modular structure allows adjustment of mounting positions and configurations, making the system adaptable to different installation requirements.
During operation, the angled tooth profile maintains continuous contact across the gear surface. This helps distribute load evenly, reducing localized stress and supporting consistent torque transmission. At the same time, precise alignment between shafts and bearings helps maintain smooth rotation and limits vibration during extended operation.
The housing structure maintains rigidity and supports proper lubrication conditions, helping protect internal components over long service cycles. Helical gear motor works effectively in conveying equipment, processing machinery, and general industrial drive systems where stable transmission and flexible configuration are required.
Technical Specifications
Industry Applications
-
Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
