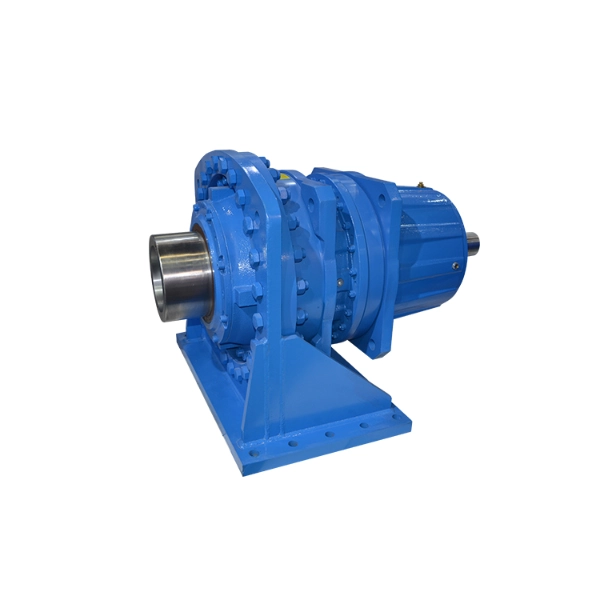

GMR Series Planetary Slewing Drive
GMR series planetary slewing drive serves as a compact speed reduction unit for rotating mechanisms, delivering controlled rotation and stable torque output. It integrates with constant or variable hydraulic motors, allowing flexible system configuration. The structure supports continuous operation in applications such as drilling rigs, track drives, and winches. Optional braking and clutch systems help maintain motion control and allow safe handling during special conditions. This design supports reliable performance under demanding load and environmental conditions.
Product Features
🟢 High Torque Output — Advanced planetary gear design provides strong torque transmission and excellent load capacity for demanding applications.
🟢 Compact and Durable Structure — The optimized structure ensures a compact size while maintaining high mechanical strength and durability.
🟢 Flexible Hydraulic Motor Connection — Compatible with both constant and variable hydraulic motors, allowing easy integration with different hydraulic systems.
🟢 Reliable Hydraulic Brake System — Optional spring brake with hydraulic release provides stable braking performance and enhanced operational safety.
🟢 Emergency Mechanical Clutch Option — Some models can be equipped with a mechanical disengagement clutch, enabling safe towing during emergency situations.
🟢 Wide Application Range — Suitable for rotary drilling rigs, crawler track drives, road rollers, cranes, milling machines, tunneling machines, and other heavy-duty equipment.

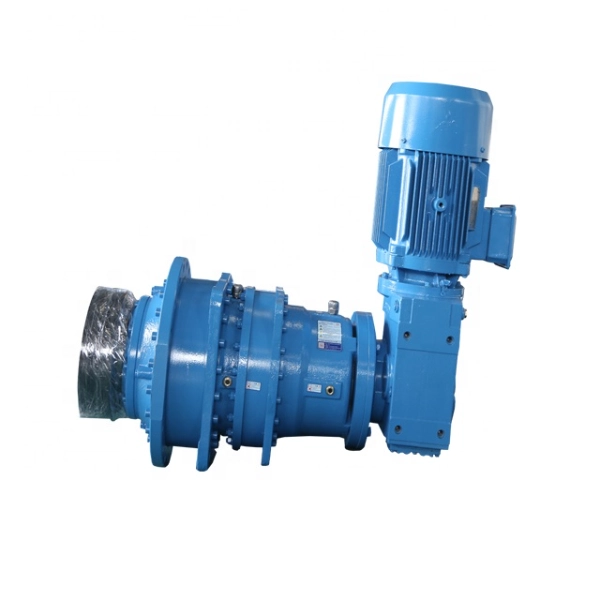

Planetary Slewing Drive For Rotary Motion Transmission Systems
Planetary slewing drive delivers controlled speed reduction and high torque output for rotating mechanisms. It combines a planetary gear system with a slewing output structure, allowing continuous rotational motion under load. This configuration supports applications where stable rotation and load handling must remain consistent over extended operating cycles.
Planetary Rotation Structure With Hydraulic Integration
- Planetary gear system supports high torque transmission
- Compact structure supports integration into rotating equipment
- Compatible with hydraulic motor connections
- Optional brake system supports motion control
The transmission process begins when the input motor drives the planetary gear set. This interaction reduces speed while increasing torque, which transfers directly to the slewing output. The system maintains smooth rotation even under high load conditions, supporting stable performance during continuous operation.
During operation, multiple gears share the load, which helps distribute force across the system. This reduces stress on individual components and supports consistent torque output. In addition, the planetary arrangement helps maintain compact size while handling high torque requirements.
The housing protects internal components and supports lubrication conditions during operation. Optional braking and clutch systems help control rotation and allow safe handling during special operating conditions. Planetary slewing drive fits equipment such as drilling rigs, crawler systems, and lifting machinery where controlled rotation and load stability are required.

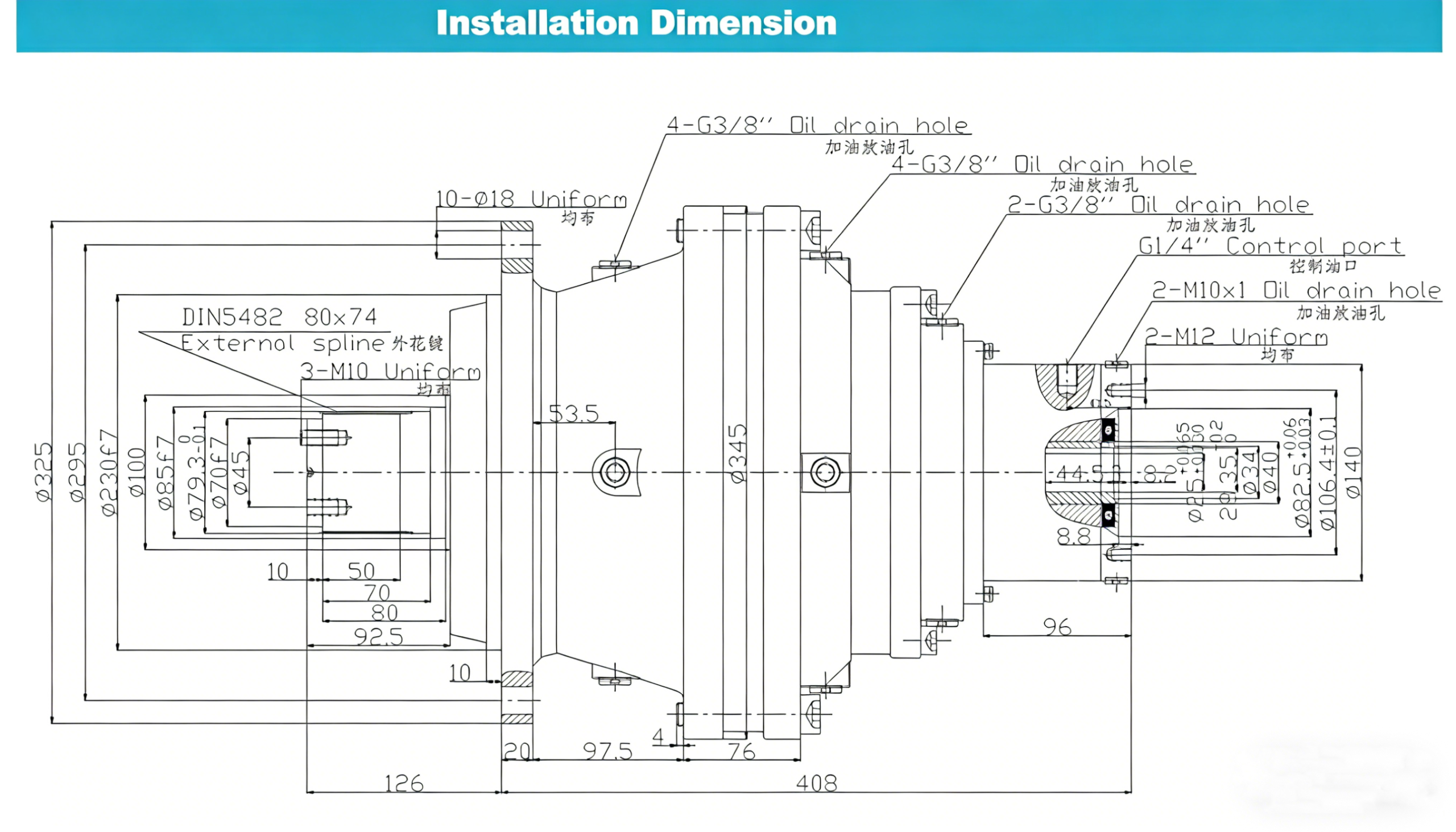

Technical Specifications
Industry Applications
-
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors -
Rubber & Plastic Machinery
Extruders, mixers, calenders, processing lines -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mixing & Agitation Equipment
Mixers, agitators, blenders, industrial processors
