NMRV Worm Gear Reducer: Guide to Features and Industrial Benefits

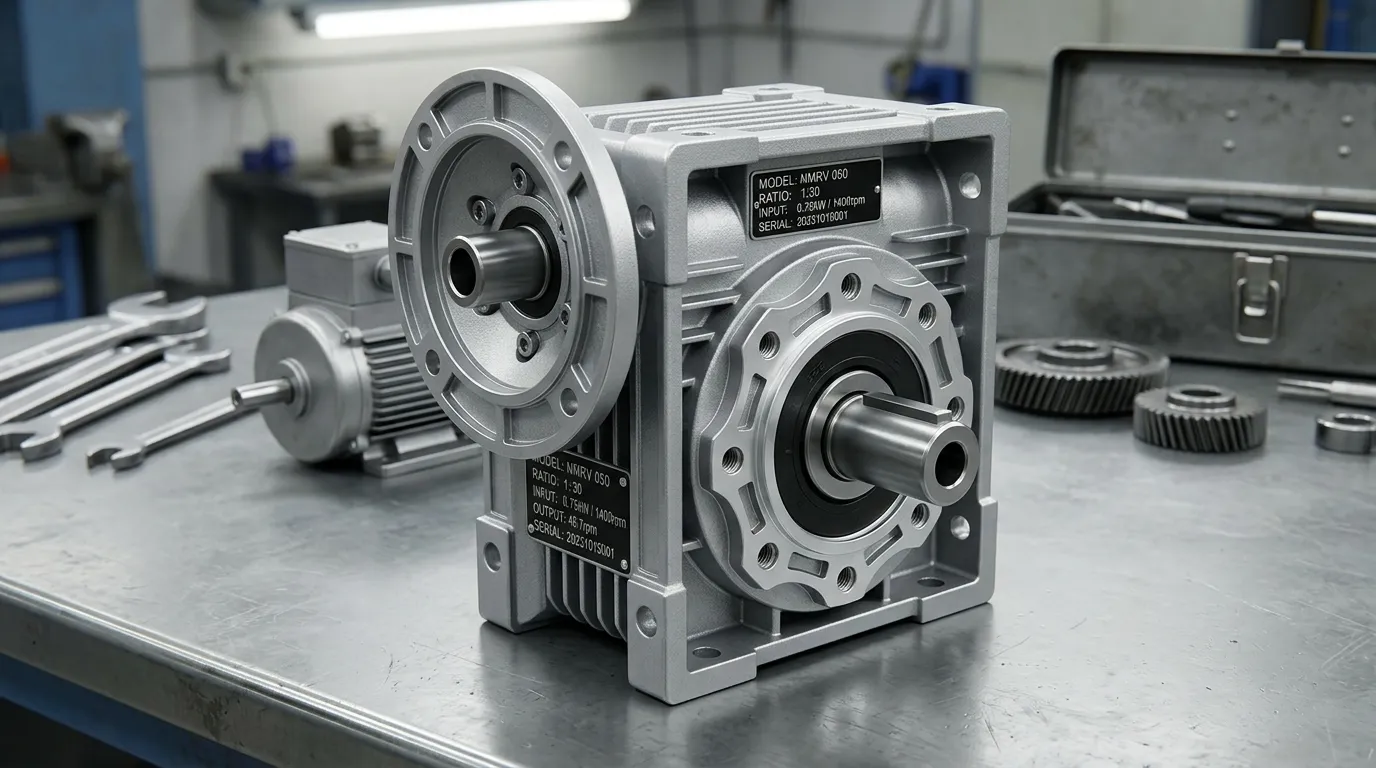

What is an NMRV Worm Gear Reducer?

An NMRV worm gear reducer is a form of worm gearbox that is created to slow down the speed of the motor but increase the output torque. It conveys power through a hardened worm shaft and bronze worm wheel system.

The gearbox transforms high input speed into controlled output movement. This operation helps in the smooth running of machines that need to move steadily and be in the right position. A worm drive gearbox is designed with a right-angle gearbox design as opposed to a normal gear system. The motor shaft and output shaft remain at 90 degrees. This design allows the saving of installation space and allows a flexible machine design.

It is small in size and therefore can be used in:

•          Conveyor drive systems

•          Textile machine transmission

•          Gearbox systems of lifting equipment.

•          Packaging machines

•          Automated conveyor solution arrangements.

•          Motion control in industry.

NMRV Worm Gear Reducer for Dependable Industrial Power Transmission

Industrial machines require consistent movement, even torque, and consistent speed. This is where the NMRV worm gear reducer is a reliable option. Its small size, low noise, and high loading capacity make it applicable in most industries.

• Since conveyor drive systems and packaging machinery gearbox systems, this reducer provides controlled motion with reduced vibration and constant transmission characteristics. The reason why many factories like this gearbox is that it does not consume much space and generates high torque.
• The modern industries require improved machine power transmission that has fewer maintenance requirements. The NMRV series fulfills that requirement with its small transmission design and robust gearbox construction.
• When you are dealing with industrial automation, food processing equipment, or material handling systems, knowing the operation of this gearbox can help enhance machine operation and life cycle.

Important Parts of the NMRV Worm Gearbox

A worm gear reducer relies on its internal design to perform. All the parts facilitate effective power flow and durability.

• Hardened Worm Shaft

The hardened worm shaft handles rotational input from the motor. Heat treatment enhances wear resistance and increases life.

• Bronze Worm Wheel

The bronze worm wheel minimizes friction and helps the motion to be smooth. It also reduces noise when it is continuously operating.

• Aluminum Housing Gearbox

The majority of NMRV models are made with a die-cast aluminum body. This design ensures that the gearbox is lightweight and enhances thermal stability. The internal parts are also safeguarded against dust and moisture by the corrosion-resistant housing.

• Hollow Shaft Design

A hollow shaft design to connect to the machine directly is used in many models. This design makes it easy to install and minimizes misalignment.

• Lubrication System

An efficient lubrication system maintains the heat and minimizes wear among moving components. Transmission efficiency is also enhanced by good lubrication.

The Reason Why Industries Use NMRV Worm Gear Reducers

Factories prefer these reducers due to their strength, small size, and natural transmission characteristics.

• Compact Gearbox Solution

Machines are usually used in a small area. The small gearbox system enables the engineers to fit the reducer without making significant structural modifications.

• Low Noise Transmission

The worm and wheel slide against each other, producing a low vibration operation. This design maintains control of machine noise.

• High Load Capacity

Torque handling is needed in heavy-duty machinery. The NMRV gearbox is able to operate under variable loads.

NMRV Worm Gear Reducers: Applications

This industrial reduction gearbox is beneficial to numerous industries due to its versatile mounting and consistent transmission.

• Conveyor Drive System

Movement of conveyors must be smooth and controlled. A worm gear reducer is used to ensure a constant belt speed when loading various loads.

• Packaging Machinery Gearbox

Packaging lines rely on proper timing and constant movement. The gearbox assists in ensuring a consistent speed when filling, sealing, and labeling.

• Food Processing Equipment

Food machinery should have low noise transmission and corrosion-resistant surfaces. The aluminum housing gearbox is suitable for clean production.

SWL Series Worm Gear Screw Reducer of Lifting Systems

The SWL Series Worm Gear Screw Reducer is a rotary-to-linear motion converter. It helps in lifting, positioning, and synchronized movement systems. This is a structure that drives the screw shaft by a worm gear mechanism. The system produces proper vertical movement and stability of loads.

Screw Drive Linear Motion Structure

The rotational movement is converted into linear movement by the reducer using a screw-driven system. Important features include:

• Worm gear actuator screw shaft up and down.
• Self-locking nature does not allow back-and-forth movement.
• Multi-unit linkage facilitates coordinated lifting systems.
• Small size fits into a small installation space.

The screw mechanism is activated by the worm gear to lift loads either uphill or downhill. The screw thread rotation continues to provide lifting speed and distance of displacement. This arrangement maintains predictability and ease of control in the movement when positioning is required.

The support of the load is constant since the screw structure transfers the applied force directly. When movement ceases, the self-locking mechanism aids in retaining the load without additional braking mechanisms.

Importance of Transmission Efficiency

The efficiency of transmission influences machine performance and energy consumption. Inefficiency generates heat loss and higher operating expenses. Several factors affect gearbox efficiency:

•          Gear material quality

•          Lubrication system condition

•          Load capacity

•          Input speed

•          Alignment accuracy

A well-kept worm gearbox is capable of providing years of service.

Installation and Mounting Flexibility

The NMRV gearbox is compatible with multiple installations. This flexibility assists engineers in adjusting the reducer to different machine layouts.

Typical mounting options are:

•          Flange-mounted gearbox

•          Shaft-mounted reducer

•          Foot-mounted installation

•          Hollow bore connection

This flexibility facilitates the integration of electromechanical drive systems in most industries.

Worm Gear Reducers and Their Role in Industrial Automation

The current factories are highly dependent on the industrial drive technology and automated equipment. The accuracy of motion and predictable speed control are now essential production needs. An NMRV worm gearbox assists in industrial automation by:

•          Smooth torque transmission

•          Stable positioning

•          Quiet operation

•          Flexible mounting options

•          Dependable machine power transmission.

Its small size also fits in the modern automation drive unit systems, where space is not too large.

The Reason Why Businesses Prefer My Gear Motor

Industrial buyers need more than just a gearbox. They require reliable engineering services and quality production. My Gear Motor offers gearboxes to conveyor systems, automation equipment, lifting systems, and industrial machinery.

Their product line supports:

•          Mechanical drive engineering

•          Industrial automation systems

•          Integration of geared motor systems.

•          Applications of motion control gearboxes.

•          Operation of heavy-duty machinery.

The brand is a good option in industrial applications due to consistent manufacturing standards and reliable performance.

Conclusion

Selecting the appropriate NMRV worm gear reducer may enhance the life of the machine, lessen downtimes, and produce smoother industrial operation. It is compact in size, has good torque handling ability and silent transmission behavior, making it appropriate for both modern automation systems and heavy industrial applications.

Regardless of whether you have conveyors, lifting equipment, packaging lines, or textile machinery, the appropriate gearbox will produce superior motion control and consistent power transfer. Discover superior gearbox options with Mingye and locate reliable systems designed to be used in the industry.
