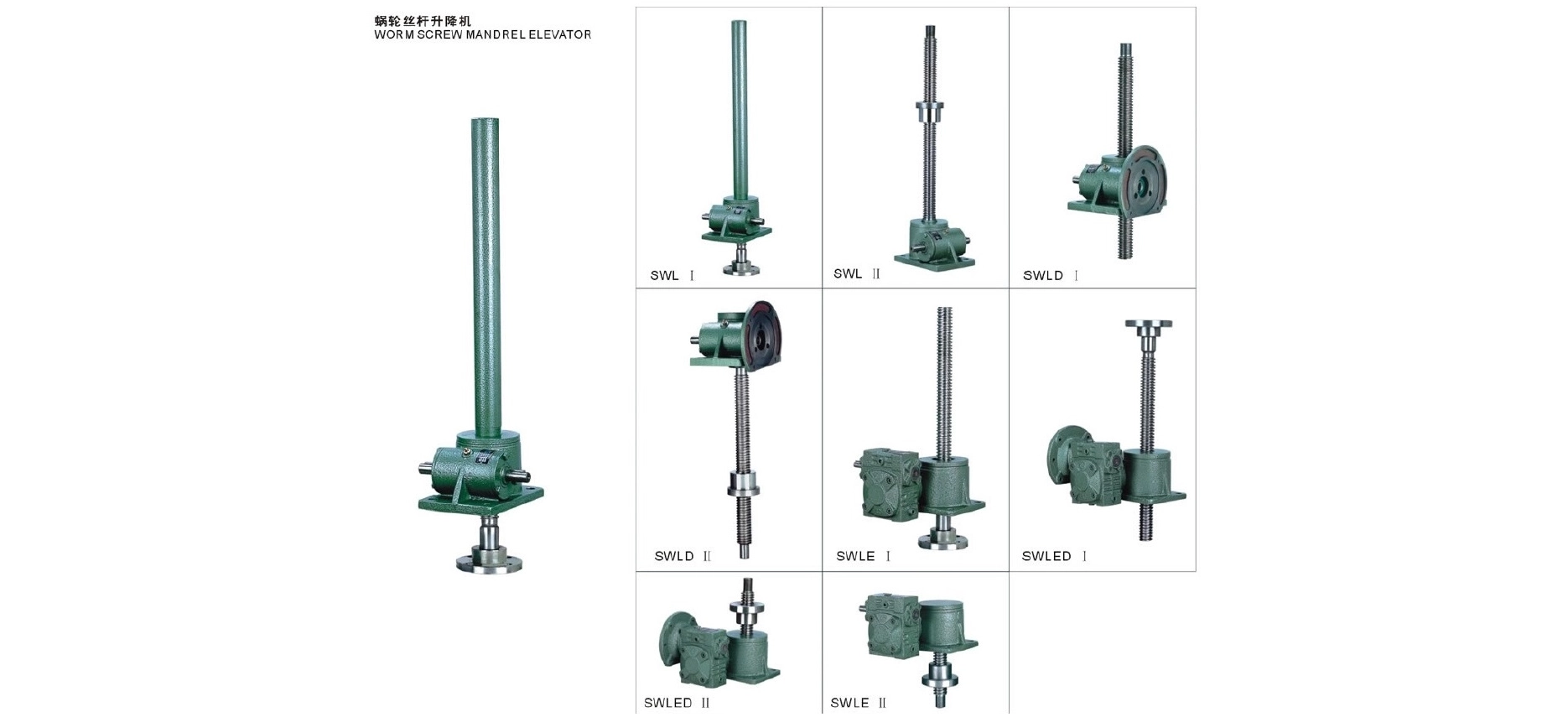

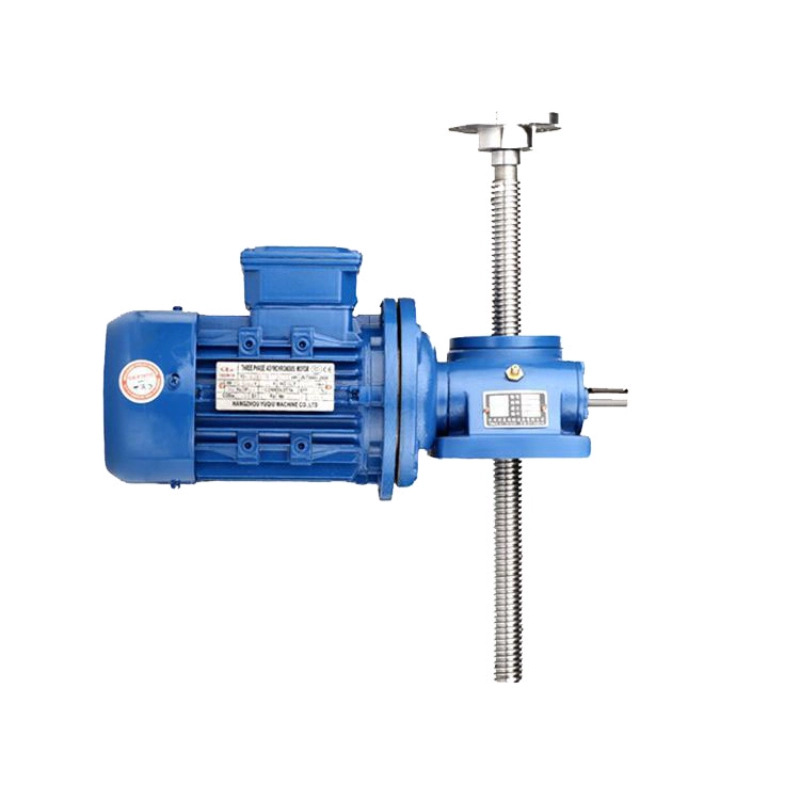

SWL Series Worm Gear Screw Reducer
SWL Series Worm Gear Screw Reducer converts rotational input into precise linear movement for lifting and positioning tasks. Its worm gear mechanism drives the screw shaft, allowing controlled height adjustment under load. The structure supports motor drive, manual input, or combined systems, which enables flexible use across different equipment layouts. With compact construction and stable transmission behavior, it maintains consistent lifting performance while adapting to various installation configurations and linkage arrangements.
Product Features
🟢 Self-Locking Ability — Ensures secure positioning and prevents reverse movement during operation.
🟢 Multiple Power Sources — Can be driven by motor, other power sources, or manual operation.
🟢 Compact and Lightweight Design — Compact configuration with small size and lightweight structure.
🟢 Flexible Installation and Multi-Function Use — Easy installation, flexible operation, and suitable for various supporting forms.
🟢 High Reliability and Long Service Life — Stable performance with reliable operation and extended service life.
🟢 Linkage Operation System — Multiple units such as 2 sets, 3 sets, 4 sets, or 8 sets can be linked together for synchronized lifting systems.
🟢 Low Noise and Stable Performance — Smooth transmission ensures quiet and stable operation.
🟢 Standardized Series Design — Standardized and modular design for convenient integration.
🟢 Reverse Operation Capability — Supports reverse operation to meet different lifting requirements.
Worm Gear Screw Reducer For Lifting And Positioning Systems
Worm gear screw reducer converts rotational motion into linear displacement through a screw-driven mechanism. The input rotation transfers through a worm gear set, which then drives the lifting screw along its axis. This structure allows controlled vertical movement with stable load handling.
Screw Drive Structure For Controlled Linear Motion
- Worm gear drives screw shaft for vertical movement
- Self-locking characteristic holds position without back drive
- Multi-unit linkage supports synchronized lifting systems
- Compact structure fits into limited installation space
The worm gear engages with the screw mechanism to move the load upward or downward. The rotation continues along the screw thread, which determines the lifting speed and displacement distance. This direct conversion keeps motion predictable and easy to control during positioning tasks.
Load remains supported by the screw structure, which helps maintain stability when movement stops. The self-locking behavior prevents reverse motion without additional braking components. This feature becomes useful when precise positioning needs to remain unchanged under load.
The system can operate as a single unit or connect with multiple reducers to form a synchronized lifting arrangement. Shaft connections and layout can match different structural designs, which allows adaptation to various equipment configurations while maintaining consistent motion behavior.
Technical Specifications
Industry Applications
-
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mixing & Agitation Equipment
Mixers, agitators, blenders, industrial processors -
Conveyor Systems
Belt conveyors, roller conveyors, transfer systems, material handling
