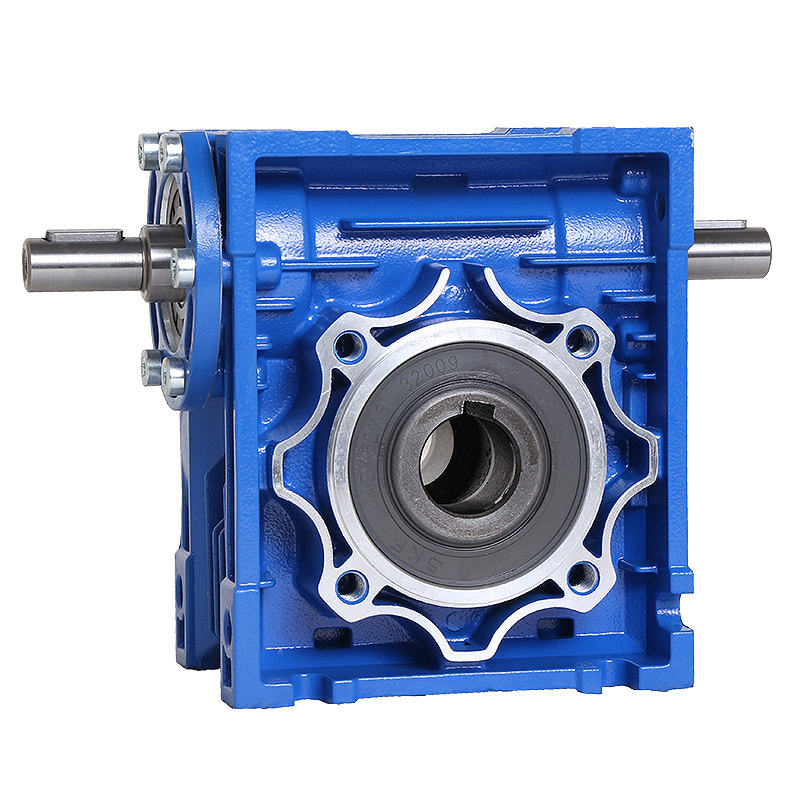

RV Series Worm Gear Motor
RV series worm gear motor features a compact square housing and right angle transmission structure for efficient power transfer. It supports smooth motion with low noise during operation while maintaining stable torque output. The design allows flexible installation and simplifies maintenance. At the same time, the housing structure improves heat dissipation, helping maintain consistent performance. This configuration supports reliable operation across varying load conditions in compact mechanical drive systems.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢 The mechanical structure is compact, the volume is light and the shape is small and efficient;
🟢 Good heat exchange performance and fast heat dissipation;
🟢 Easy to install, flexible and light, superior performance, easy to maintain and repair;
🟢 Smooth operation, low noise and durable;
🟢 Strong applicability, high safety and reliability.
Worm Gear Motor For Compact Right Angle Drive Systems
Worm gear motor delivers controlled speed reduction and stable torque output through a compact right angle transmission structure. It uses a worm and gear pairing to achieve high reduction within a limited space, allowing efficient integration into mechanical systems. The design supports smooth motion and stable operation, making it suitable for continuous use under varying load conditions.
Worm Transmission Structure For Smooth Motion Control
- Compact structure supports space-saving installation
- Worm gear pairing enables high reduction ratios
- Integrated housing supports stable operation
- Smooth engagement reduces vibration and noise

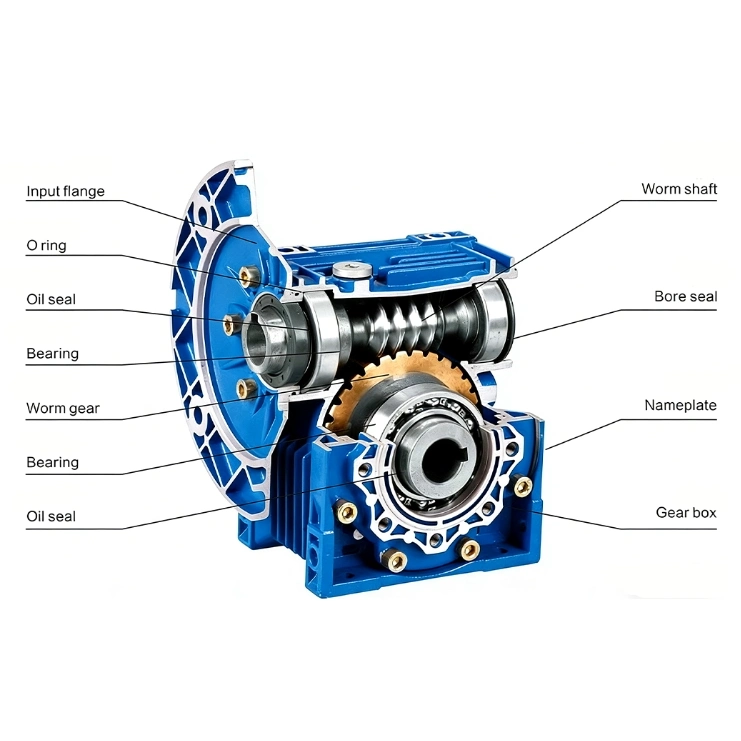

The transmission process begins when the input shaft drives the worm, which rotates against the gear wheel to reduce speed and increase torque output. This sliding contact mechanism allows gradual motion transfer, helping maintain controlled operation across different working conditions. The right angle configuration supports directional power transmission in compact layouts.
During operation, the contact between worm and gear distributes load across the surface, which helps maintain stable torque transmission. This interaction also contributes to reduced vibration and smooth running behavior. At the same time, the compact structure simplifies installation and supports flexible integration into different system designs.
The housing structure supports heat dissipation and maintains lubrication conditions during operation, helping preserve consistent performance over extended service cycles. Worm gear motor works effectively in conveying equipment, lifting systems, and general mechanical drives where compact design and stable output are required.
Technical Specifications
Industry Applications
-
Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
