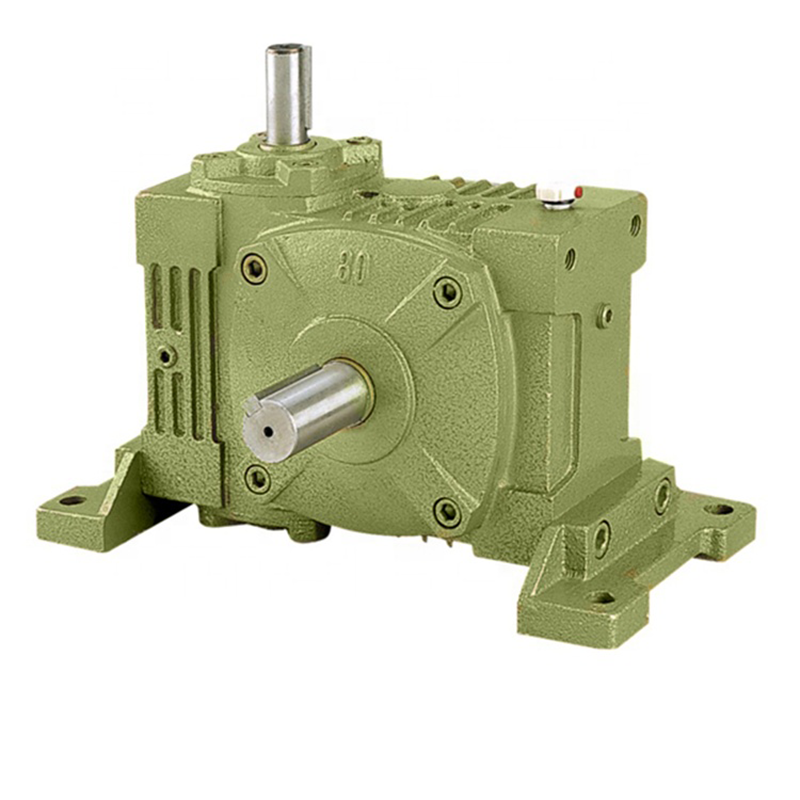

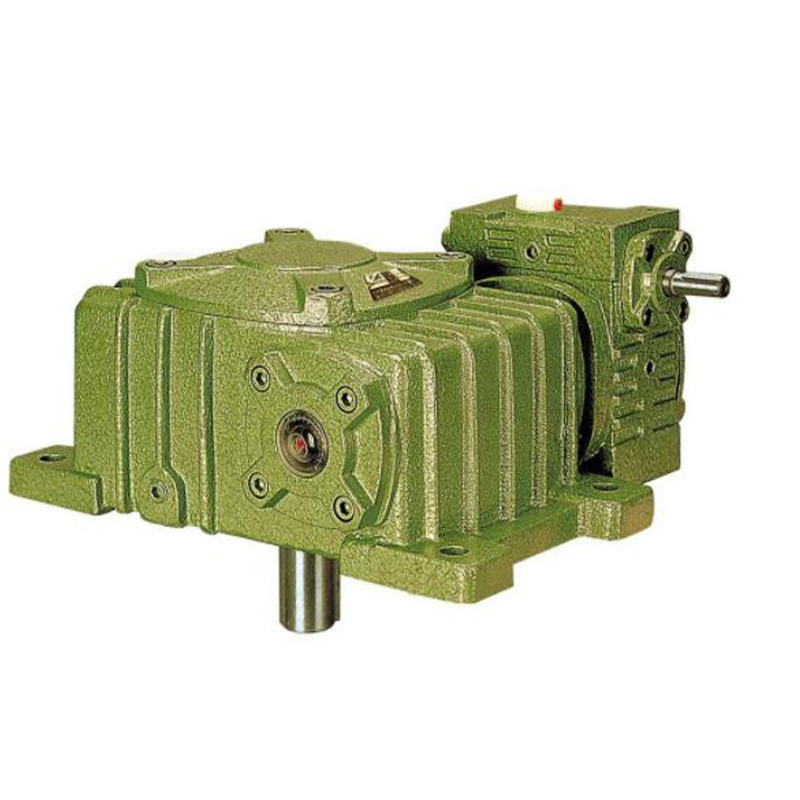

WP Series Worm Gear and Motor
WP Series Worm Gear And Motor combines a worm reducer with an electric motor to form a compact drive unit. The hardened steel worm and bronze worm wheel create a stable transmission pair that supports load handling under continuous operation. Its structure allows large reduction ratios within a small footprint. The integrated design simplifies connection with mechanical equipment while maintaining steady torque output across different operating conditions and installation arrangements.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢 Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
🟢 Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
🟢 The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
🟢 Higher requirements for lubrication and cooling.
🟢 Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.
Worm Gear And Motor For Compact Reduction Drive Systems
Worm gear and motor converts high-speed input into low-speed output through a worm and wheel interaction. The worm drives the wheel along a sliding contact path, which produces a large reduction ratio within a short transmission distance. This mechanism supports controlled motion in systems where space and speed reduction need to align.
Worm Drive Structure For High Ratio Output Control
- Hardened steel worm engages with bronze worm wheel
- Sliding contact enables large reduction ratio in compact form
- Integrated motor structure supports direct drive connection
- Gear interaction maintains stable torque transmission
The worm rotates and pushes against the worm wheel teeth, transferring motion through continuous surface contact. This interaction differs from rolling gear contact, as it follows a sliding path along the tooth surface. The motion allows gradual force transfer, which keeps output rotation steady even when load conditions vary.
The material pairing between steel and bronze affects how the transmission behaves. The worm surface maintains strength under load, while the bronze wheel adapts to contact conditions, which helps reduce localized wear. This combination supports stable operation across extended working cycles.
The integrated motor structure reduces the need for additional coupling components. It connects directly with driven equipment, which simplifies the transmission path. Worm gear and motor fits systems where compact structure, controlled speed, and steady torque output must work together within limited installation space.
Technical Specifications
Industry Applications
-
Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
