Vertical Micro Cycloidal Reducer

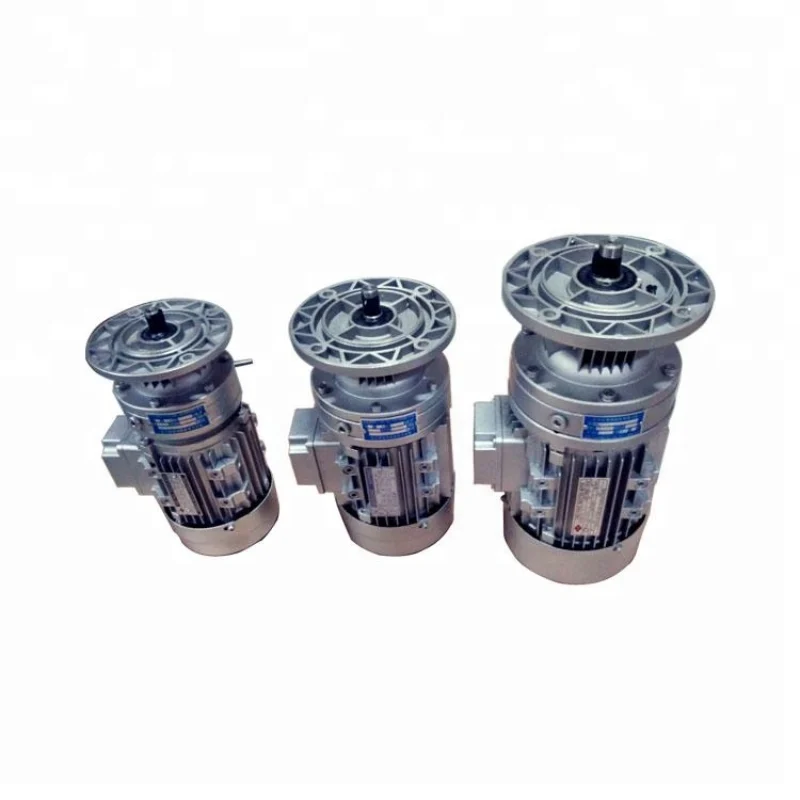

WB Series Vertical Micro Cycloidal Reducer delivers compact transmission through a vertical structure combined with cycloidal motion. The aluminum housing reduces overall weight while maintaining structural strength. Internal components operate within a sealed lubrication environment, which supports consistent motion behavior. Its modular configuration allows different ratio and torque combinations within a small footprint. This arrangement supports stable performance across varying load conditions and enables flexible installation in multi-direction mechanical systems.
Product Features
🟢 Adopts aluminum alloy die-casting shell, with more beautiful appearance, smaller volume and lighter weight.
🟢 Factory pre-injected with grease, greatly facilitating user lubrication; grease is not easy to leak, and the product can be used in any direction and angle as required.
🟢 The bottom horizontal and vertical flanges are all made of aluminum alloy, with high installation precision and stable operation after standard calibration.
🟢 The output shaft is designed with a humanized installation structure, avoiding hammer damage and ensuring the service life of the product.
🟢 High degree of modularization and standardization, with fewer types of parts specifications, easy for maintenance and replacement.
🟢 Wide coverage of power (60W ~ 3KW), torque (25N•m ~ 250N•m) and gear ratio (single stage 11-87, two stage 121-5133), strong adaptability.
🟢 Multi-scenario application, suitable for electric power, coal, cement, metallurgy, port, agriculture, military industry, ship and other multiple industries.
Vertical Micro Cycloidal Reducer For Compact Vertical Transmission Systems
Vertical micro cycloidal reducer operates through an eccentric-driven cycloidal mechanism arranged in a vertical layout. The input shaft drives an offset motion that guides the cycloidal disc along a defined orbital path. This motion engages with a pin gear ring, forming a continuous rolling interaction instead of direct sliding contact.
Vertical Cycloidal Structure For Multi Direction Installation
- Vertical mounting structure supports compact equipment layout
- Aluminum housing reduces weight while maintaining rigidity
- Multi-point contact distributes load across internal components
- Pre-lubricated internal system supports stable motion behavior
The eccentric sleeve generates a displacement that drives the cycloidal disc into combined rotation and revolution. This movement interacts with the surrounding pin gear ring, which produces differential engagement across multiple teeth. The motion path continuously shifts, allowing load to spread across the contact surface instead of concentrating at one point.
The vertical configuration influences how force transfers through the reducer. Gravity and load direction align along the shaft axis, which helps maintain balanced internal motion. This arrangement supports consistent torque output even when installation orientation changes across equipment layouts.
The internal components operate within a sealed lubrication environment. Grease remains contained within the housing, allowing stable interaction between moving parts without requiring frequent maintenance. Vertical micro cycloidal reducer fits systems where compact size, directional flexibility, and stable transmission need to work together within limited installation space.
Industry Applications
-
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors -
Rubber & Plastic Machinery
Extruders, mixers, calenders, processing lines -
Material Handling Systems
Cartoning, filling, sealing, conveyor systems -
Conveyor Systems
Belt conveyors, roller conveyors, transfer systems, material handling
