Product Features
🟢 High Speed-Regulating Precision — Provides precise speed adjustment with accuracy up to 1.5–1 rotation.
🟢 Wide Speed Variation Range — Speed ratio can be freely adjusted from 1:1.4 to 1:7.
🟢 High Strength and Long Service Life — Durable design ensures stable operation and extended service life.
🟢 Smooth and Stable Operation — Supports continuous forward and reverse running with smooth transmission and low noise.
🟢 Fully Sealed Structure — Full sealing design allows reliable operation in various working environments.
🟢 High-Quality Aluminum Alloy Housing — Die-cast aluminum alloy body offers lightweight structure and good heat dissipation.
🟢 Excellent Compatibility — The UDL series stepless speed variator can be combined with various gear reducers to achieve lower stepless speed variation and flexible drive systems.

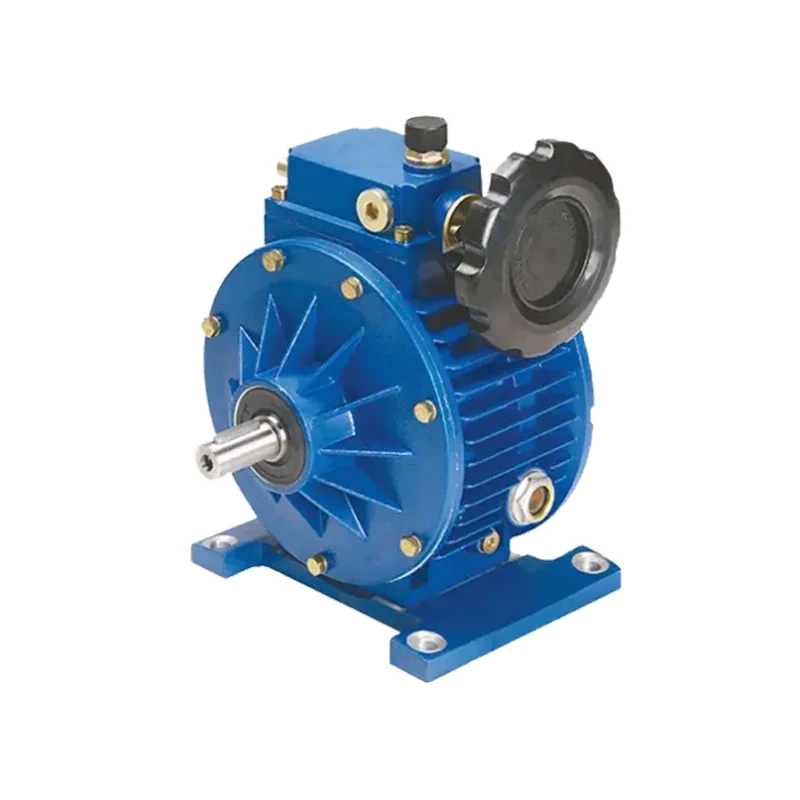

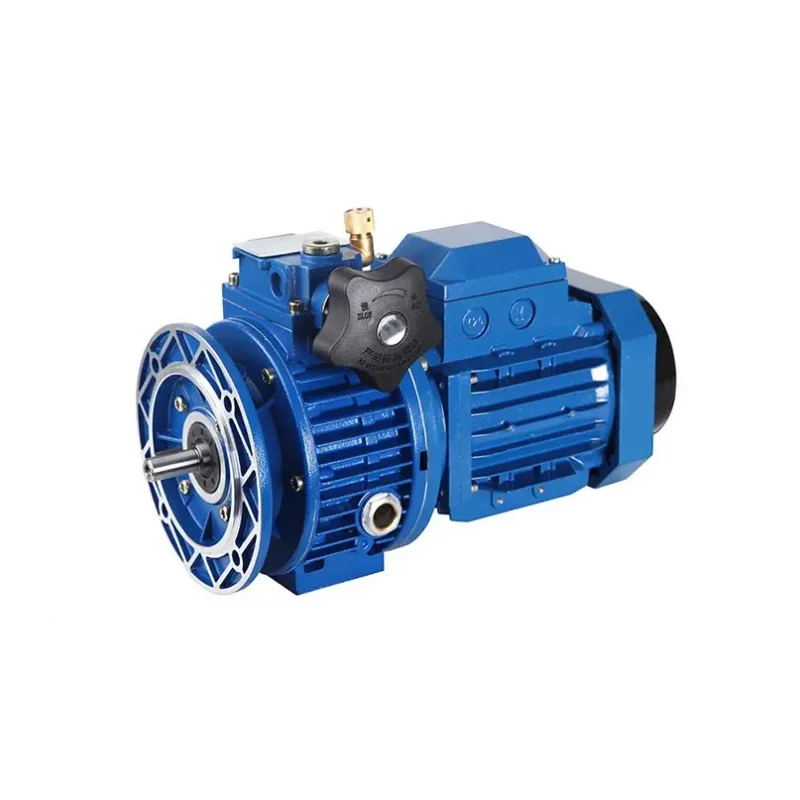

Variable Speed Gearbox For Stepless Transmission Systems
Variable Speed Gearbox adjusts rotational speed through a mechanical variator that changes the transmission ratio without interrupting motion. It uses a friction-based or cone-disc mechanism to alter the contact position, which directly affects output speed. This design allows smooth transitions between speed levels while maintaining stable torque transmission.
Stepless Variator Structure For Continuous Speed Control
- Stepless ratio adjustment supports continuous speed variation
- Cone or disc mechanism changes contact position for control
- Aluminum housing supports heat dissipation and lightweight structure
- Compatible design allows connection with gear reducers
The speed adjustment process occurs through the movement of internal components that shift contact radius. As the contact point moves outward or inward, the transmission ratio changes accordingly. This method avoids discrete gear steps, which allows gradual speed variation rather than fixed intervals.
The transmission remains stable during adjustment because torque transfer continues along the same motion path. This keeps output rotation consistent while speed changes take place. In addition, the structure supports both forward and reverse operation without altering the adjustment mechanism.
The gearbox can connect with other reduction units to extend speed range and adapt to different system requirements. This combination allows flexible configuration while maintaining controlled motion behavior. Variable Speed Gearbox fits systems that require continuous speed adjustment and stable transmission under changing conditions.
Industry Applications
-
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mixing & Agitation Equipment
Mixers, agitators, blenders, industrial processors -
Conveyor Systems
Belt conveyors, roller conveyors, transfer systems, material handling
