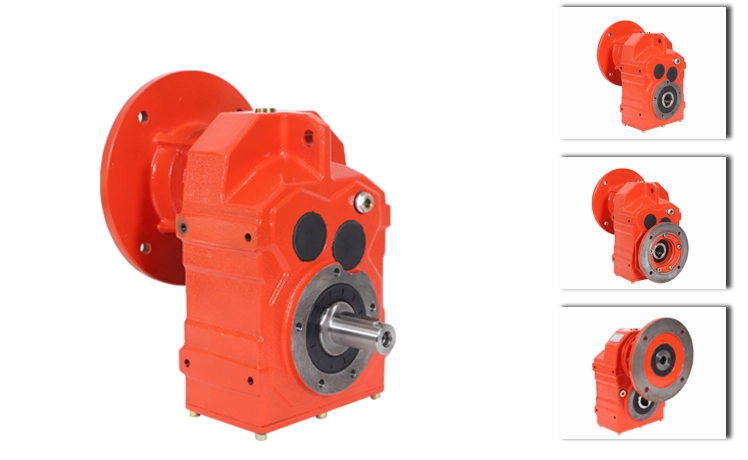

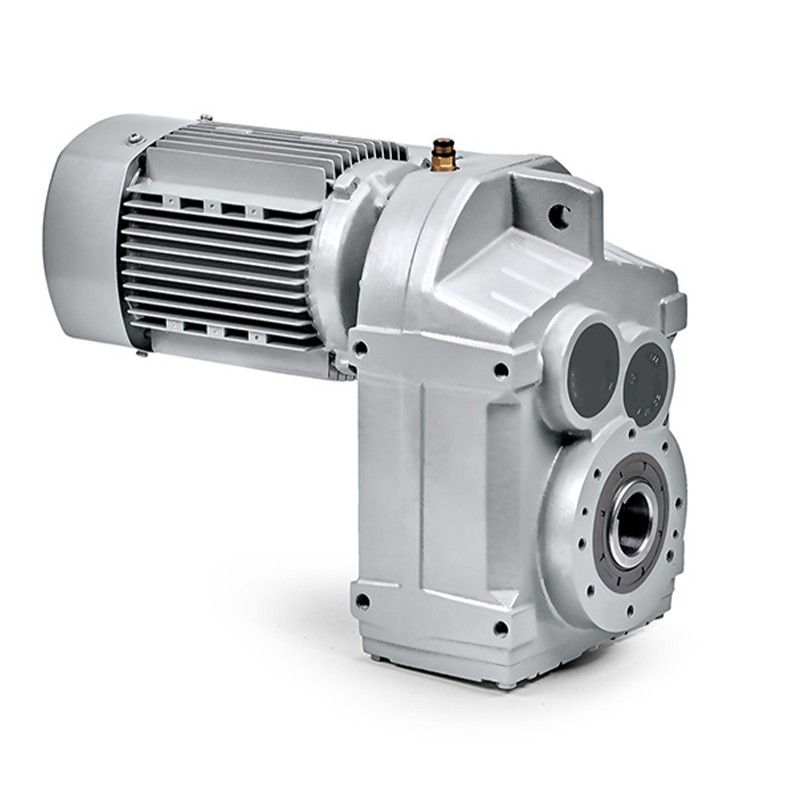

F Series Parallel Shaft Helical Gear Motor
Parallel shaft helical gear motor combines a motor with a helical gear system to provide controlled speed and stable torque output. Its parallel shaft design supports direct power transmission in compact layouts. The integrated housing improves structural stability while reducing vibration during operation. At the same time, precision-ground gears help maintain smooth transmission. This configuration supports consistent performance under continuous load conditions in conveying, transport, and general mechanical drive systems.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢 High efficiency and save power.
🟢 High modular design, flexible mounting mode.
🟢 Integrated casting housing,compact dimension, stable transmitting and low noise level.
🟢 Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
🟢 Advanced gear grinding and modified profile, high loading support and more safe operation.

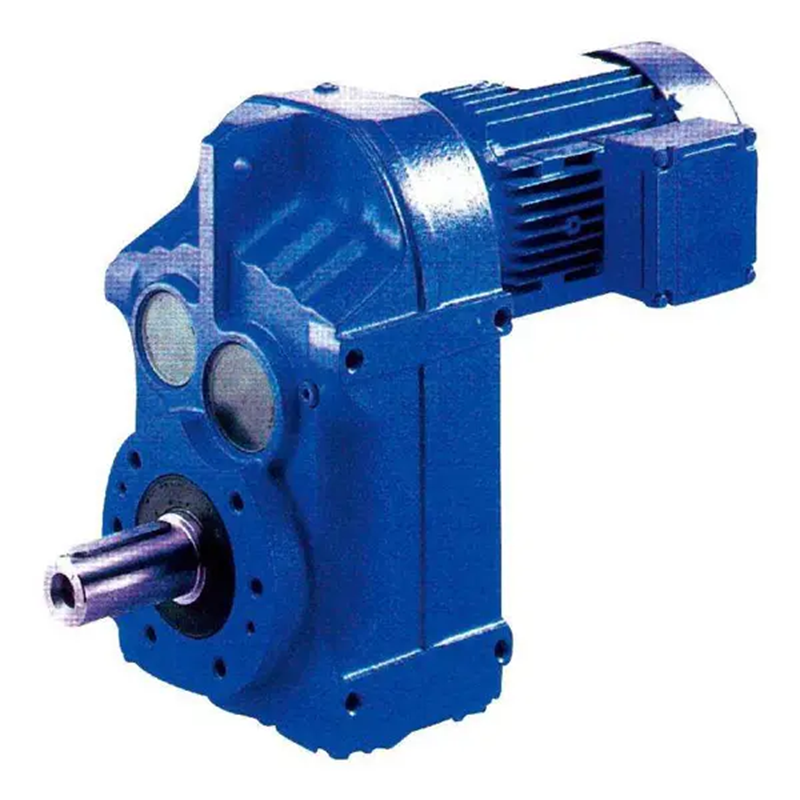

Parallel Shaft Helical Gear Motor For Conveyor Drive Systems
Parallel shaft helical gear motor delivers controlled speed reduction and stable torque output through a parallel shaft transmission structure. It uses helical gears with angled teeth to create gradual engagement, which helps maintain smooth motion and reduce vibration. This structure supports systems that require stable operation and efficient power transmission over long operating cycles.
Helical Gear Motor Structure For Stable Transmission
- Parallel shaft design supports direct power flow
- Modular structure supports flexible mounting configurations
- Precision-ground gears improve load capacity
- Integrated housing supports stable and low-noise operation
The transmission process begins with the motor generating rotational motion, which transfers directly through the helical gear set. This interaction reduces speed and increases torque output, allowing controlled motion during operation. The direct shaft arrangement helps maintain consistent power transfer while supporting compact system design.
During operation, the angled gear teeth engage progressively, which helps distribute load across the gear surface. This reduces localized stress and supports stable torque output under varying load conditions. At the same time, smooth engagement helps limit vibration and maintain steady operation.
The housing structure supports sealing performance and maintains lubrication conditions, helping protect internal components during long operating cycles. Parallel shaft helical gear motors fit conveyor systems, transport machinery, and general mechanical drives that require stable transmission and compact installation.
Technical Specifications
Industry Applications
-
Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
