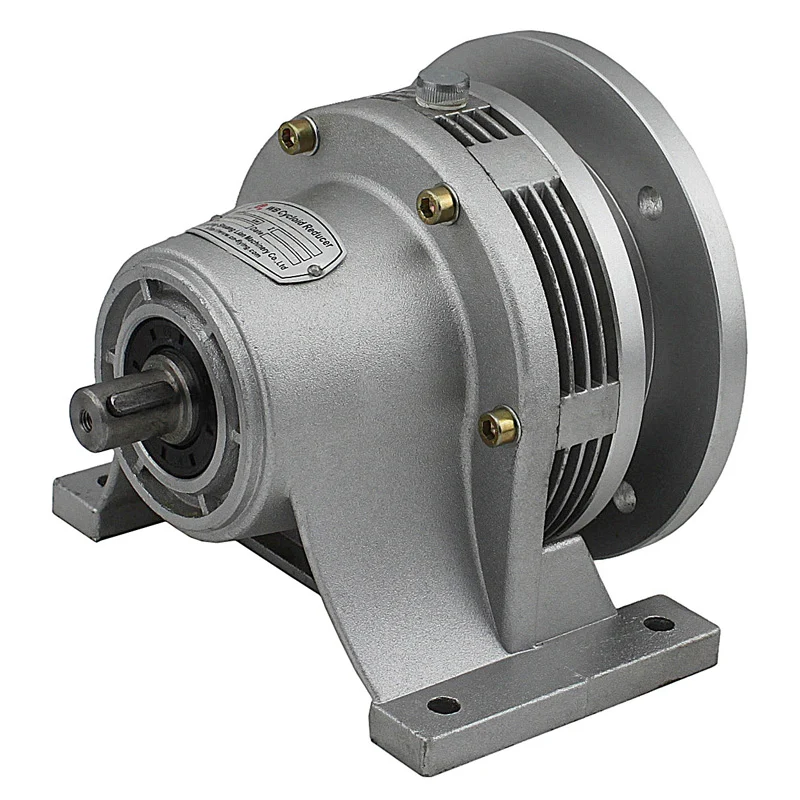

Horizontal Micro Cycloidal Reducer
WB series horizontal micro cycloidal reducer features a compact structure and lightweight aluminum housing for space-saving transmission. It uses a cycloidal mechanism to provide stable torque output and smooth motion. The pre-lubricated design allows easy installation and reduces maintenance effort. Flexible mounting options support both horizontal and vertical configurations. This structure supports stable performance across varying load conditions in small mechanical systems and light-duty industrial equipment.
Product Features
🟢 Lightweight Aluminum Alloy Housing — Adopts aluminum alloy die-casting shell with compact size, lighter weight, and improved appearance.
🟢 Pre-Lubricated Design — Filled with grease before leaving the factory, ensuring convenient lubrication and reducing the risk of oil leakage.
🟢 Flexible Installation — Supports horizontal and vertical installation with flange mounting, allowing flexible equipment integration.
🟢 Wide Power and Torque Range — Power range from 60W to 3KW, torque from 25N·m to 250N·m, suitable for various transmission requirements.
🟢 Multiple Reduction Ratios — Single-stage ratio 11–87 and two-stage ratio 121–5133, providing wide speed reduction options.
🟢 Wide Industrial Applications — Suitable for power, coal, cement, metallurgy, ports, agriculture, shipbuilding, lifting equipment, logistics, textile, paper, plastics, and light industry.
Horizontal Micro Cycloidal Reducer For Compact Transmission Systems
Horizontal micro cycloidal reducer delivers controlled speed reduction and stable torque output through a compact cycloidal transmission structure. WB series horizontal micro cycloidal reducer uses an eccentric motion mechanism to drive the cycloidal disc, which engages with a pin gear ring to achieve smooth and stable transmission. This configuration supports compact equipment where space and weight must be carefully managed while maintaining consistent mechanical performance.
Cycloidal Structure For Lightweight And Stable Operation
- Aluminum alloy housing reduces overall weight
- Pre-lubricated design supports easy installation
- Flexible mounting supports multiple installation directions
- Multi-point contact improves load distribution
The transmission process begins when the input shaft drives the eccentric sleeve, creating orbital motion of the cycloidal disc. This motion interacts with the pin gear ring, forming a rolling contact that reduces speed and increases torque output. The structure allows smooth operation while maintaining controlled motion under varying load conditions.
During operation, multiple contact points between the cycloidal disc and pin gear ring help distribute load evenly across the system. This reduces localized stress and supports stable torque transmission. At the same time, the rolling contact mechanism helps reduce internal friction, allowing the reducer to operate smoothly with lower vibration levels.
The housing design uses aluminum alloy die-casting to achieve a compact and lightweight structure. This makes installation easier while maintaining sufficient strength for continuous operation. The pre-lubricated grease system simplifies maintenance and helps maintain stable operating conditions over extended service periods.
Horizontal micro cycloidal reducer works well in small mechanical systems, conveying equipment, and light-duty industrial applications. Its compact size, flexible mounting options, and stable transmission performance allow integration into systems where space, weight, and reliability must be balanced.
