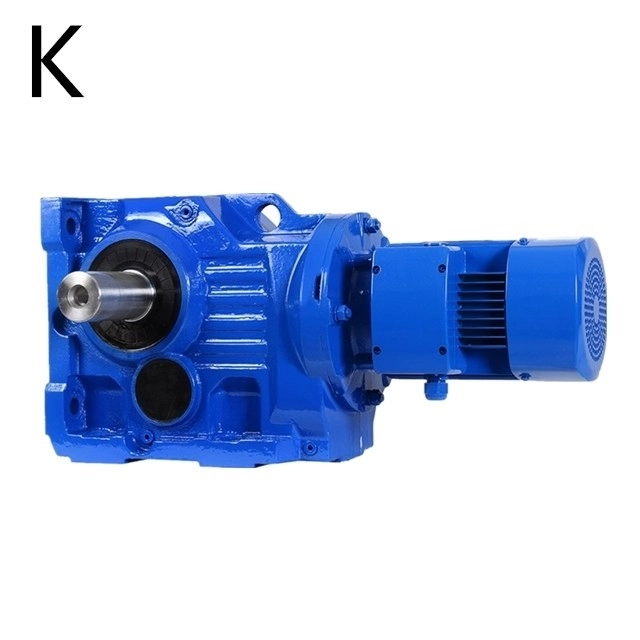

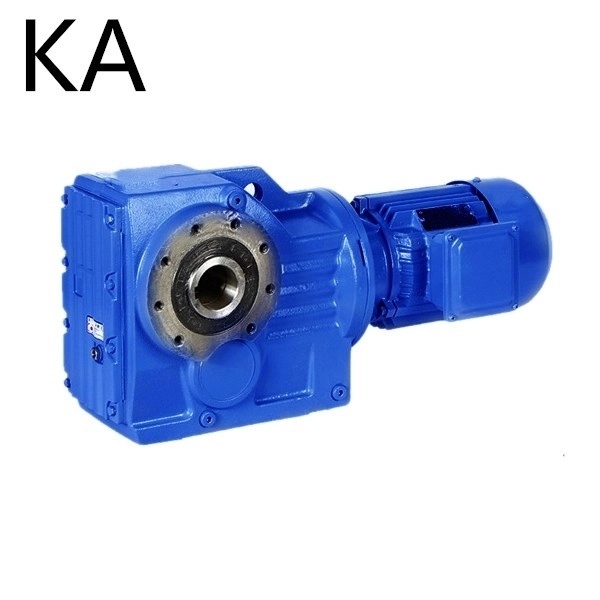

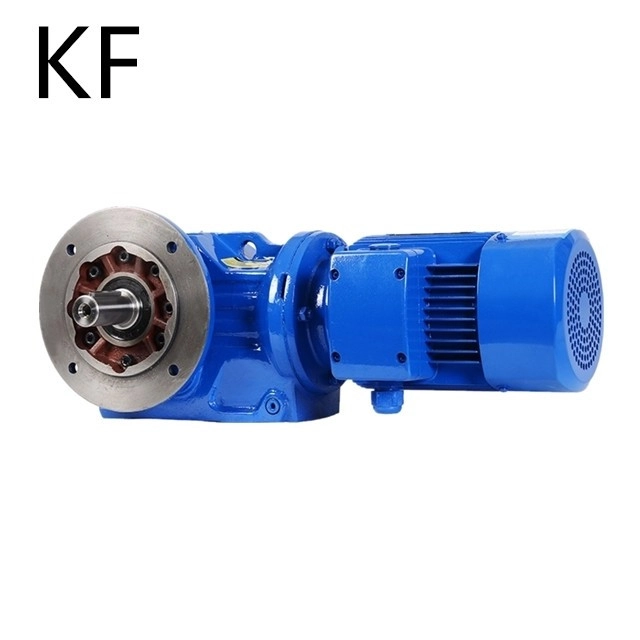

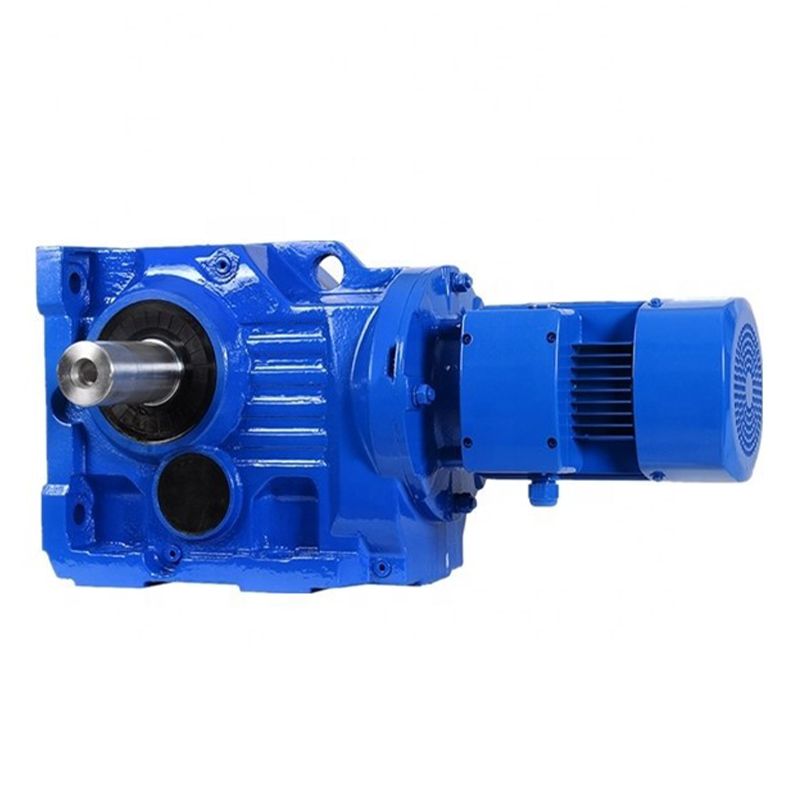

K Series Helical Bevel Gear Motor
K series helical bevel gear motor combines helical and bevel gear stages to provide controlled speed and stable torque output. Its modular structure supports flexible configuration and easy integration with different systems. The right angle design allows efficient power transmission in compact layouts. Precision gear engagement improves smooth operation while reducing vibration. This structure supports stable performance under varying load conditions and continuous operation in industrial drive applications.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢 High Modular Design – Building block structure allows flexible configuration and easy integration with different motors and drive systems.
🟢 High Efficiency & Energy Saving – Optimized gear transmission improves efficiency and reduces energy consumption during operation.
🟢 Low Maintenance Cost – Reliable structure and durable components help reduce maintenance frequency and operating costs.
🟢 Excellent Sealing Performance – Strong sealing design ensures stable operation in a wide range of industrial environments.
🟢 High Load Capacity – Robust internal structure supports heavy loads with stable transmission performance.
🟢 Low Noise Operation – Precision gear machining ensures smooth running and reduced operational noise.
Helical Bevel Gear Motor For Right Angle Drive Systems
Helical bevel gear motor delivers controlled speed reduction and stable torque output through a combined gear transmission structure. The first stage uses bevel gears to change the direction of power, while the following helical stage maintains smooth motion and stable load transfer. This arrangement supports compact layouts and ensures consistent performance during continuous operation in industrial drive systems.
Combined Gear Structure For Directional Torque Transmission
- Bevel gear stage enables right angle power transfer
- Helical gear stage improves smooth transmission
- Modular structure supports flexible mounting options

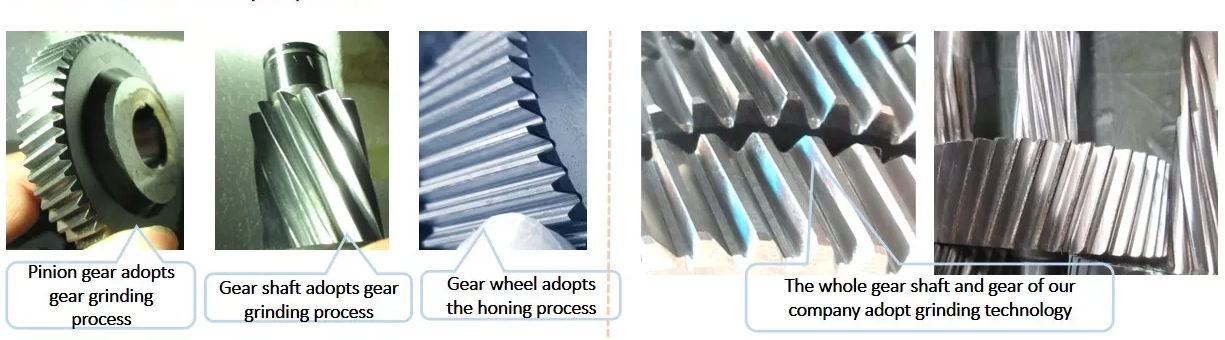

- Precision gears support stable load distribution
The transmission starts when the input shaft drives the bevel gear set, which redirects rotational motion to the output axis. After that, the helical gear stage reduces speed while increasing torque through gradual engagement. This staged process keeps motion steady and helps maintain consistent output under varying load conditions.
As operation continues, the angled gear teeth stay in progressive contact, which spreads load across the tooth surface. This reduces stress concentration and supports stable torque transmission. At the same time, the gear interaction helps limit vibration and keeps the system running smoothly over extended periods.
The housing maintains alignment between internal components and supports lubrication conditions during operation. This helps reduce wear and keeps the gearbox running steadily under continuous load. Helical bevel gear motor works well in conveying equipment, lifting systems, and machinery that require directional power transmission with stable performance.
Technical Specifications
Industry Applications
-

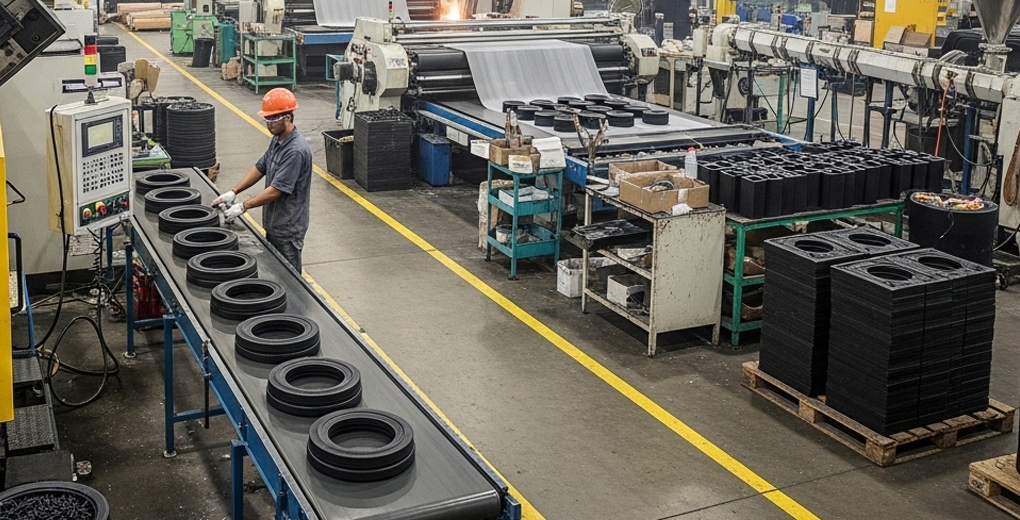

Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -

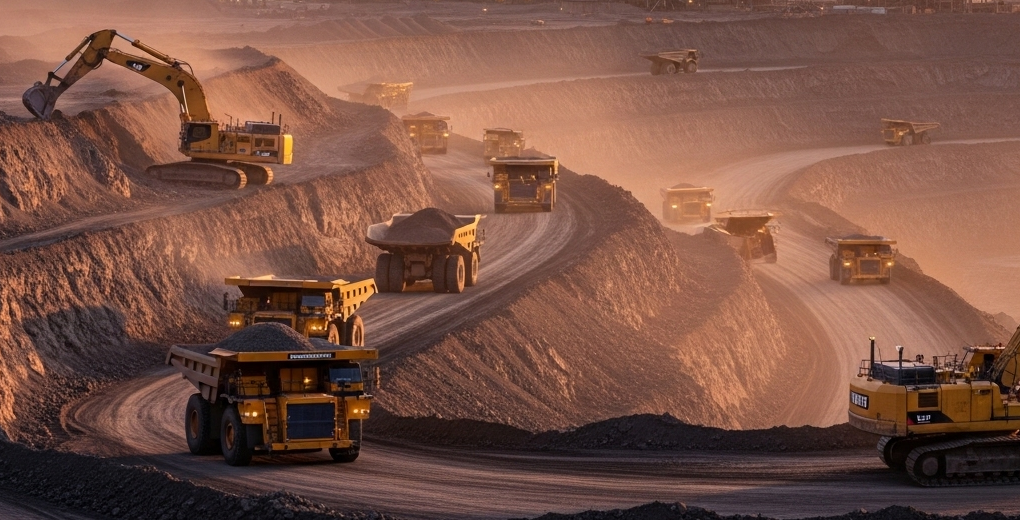

Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
