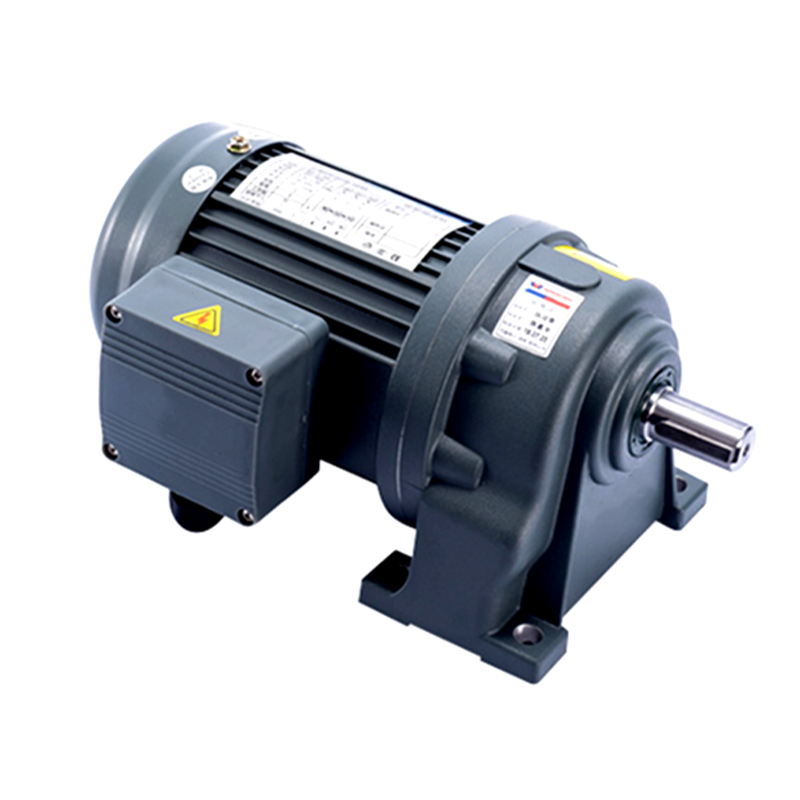

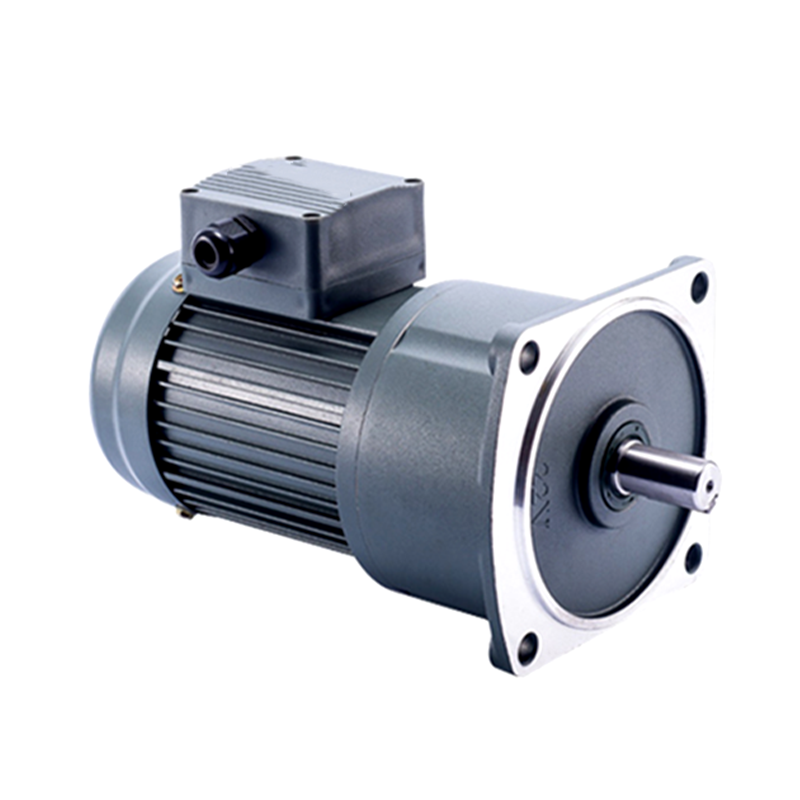

CH Series Gear Reducer Motor
Gear reducer motor integrates a motor and reduction mechanism into one compact unit, providing controlled speed and stable torque output. Its modular structure allows flexible configuration across different mounting positions. The built-in braking system engages automatically when power is cut, helping maintain operational safety. At the same time, precision-machined components support smooth transmission. This design helps reduce installation space while maintaining consistent mechanical performance under varying load conditions in continuous drive systems.
Advantages
Engineered for reliability, efficiency, and flexibility, our products deliver stable performance across diverse industrial applications.
🟢geared motor combining international technical requirements manufacturing, has very high science and technology level.
🟢 save the space, reliable and durable, high bear overload ability, the power of up to 7.5KW or more.
🟢 low energy consumption, superior performance and gear motor efficiency is as high as 95% or above .
🟢 little vibration, low noise, high energy saving, choose high quality steel materials and steel iron box, gear surface have been heat with high frequency.
🟢 Precision-machined components ensure accurate positioning and reliable gear transmission, forming a fully integrated electromechanical assembly that guarantees product quality and performance.
🟢 Taiwan-brand motors follow series and modular design concepts, offering wide adaptability with multiple motor combinations, flexible installation positions, and structural options configurable to any speed or requirement.
Gear Reducer Motor For Integrated Transmission Systems
Gear reducer motor delivers controlled speed reduction and stable torque output through an integrated electromechanical structure. It combines a motor and gear system within one housing, allowing direct power transmission without additional coupling components. This design simplifies system layout while maintaining consistent performance during continuous operation.

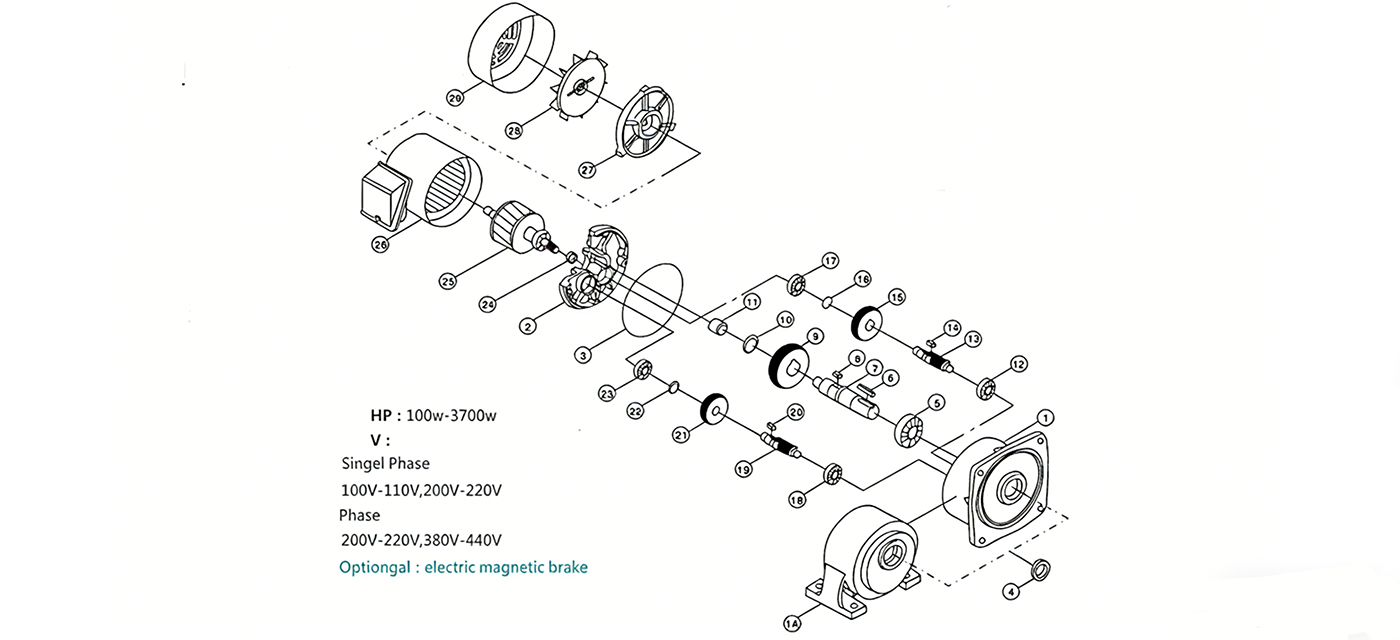

Integrated Gear Motor Structure With Brake Control
- Integrated motor and gearbox reduce installation space
- Built-in brake engages automatically during power loss
- Modular design supports flexible mounting configurations
- Precision gear engagement supports smooth torque transfer
The transmission process begins with the motor generating rotational power, which transfers directly through the internal gear system. This arrangement reduces speed while increasing torque output. The integrated structure minimizes alignment requirements, allowing the system to operate smoothly under varying load conditions.
The braking system activates automatically when power is interrupted, helping control motion and maintain system stability. This feature supports applications that require controlled stopping performance. At the same time, the compact housing protects internal components and maintains lubrication conditions for stable operation.
Gear reducer motor operates effectively in systems requiring compact drive solutions and stable motion control. Its structure supports use in conveying equipment, packaging systems, and automated machinery. The combination of integrated design and controlled output allows consistent performance across different operating environments.
Technical Specifications
Industry Applications
-
Rubber & Plastic Machinery
Extruders, injection molding, conveyor drives -
Packaging Machinery
Cartoning, filling, sealing, conveyor systems -
Material Handling Systems
Conveyors, hoists, automated storage, sorters -
Mining & Heavy Industry
Crushers, feeders, mills, heavy-duty conveyors
