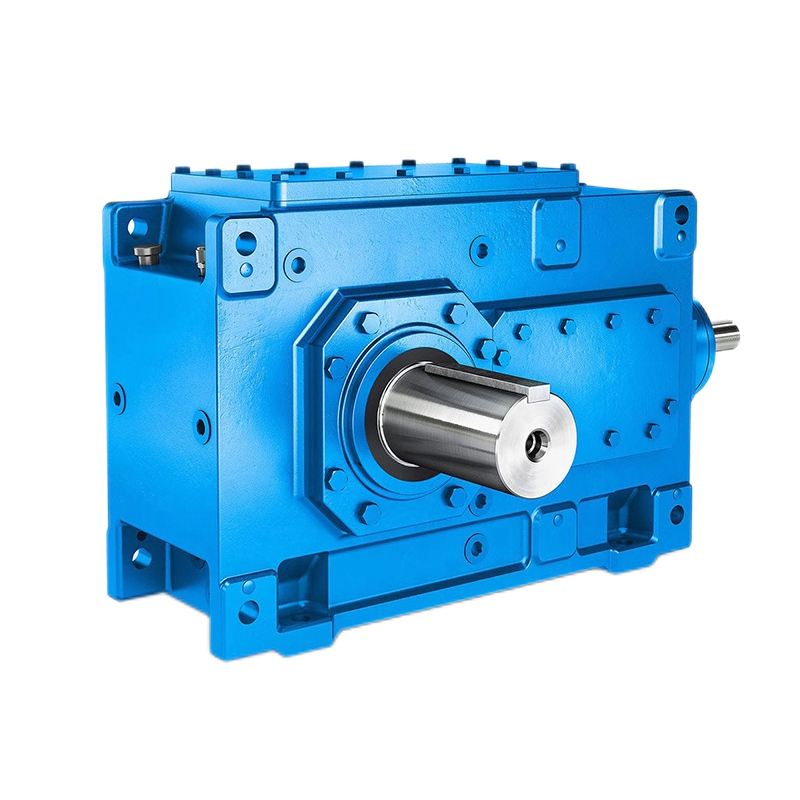

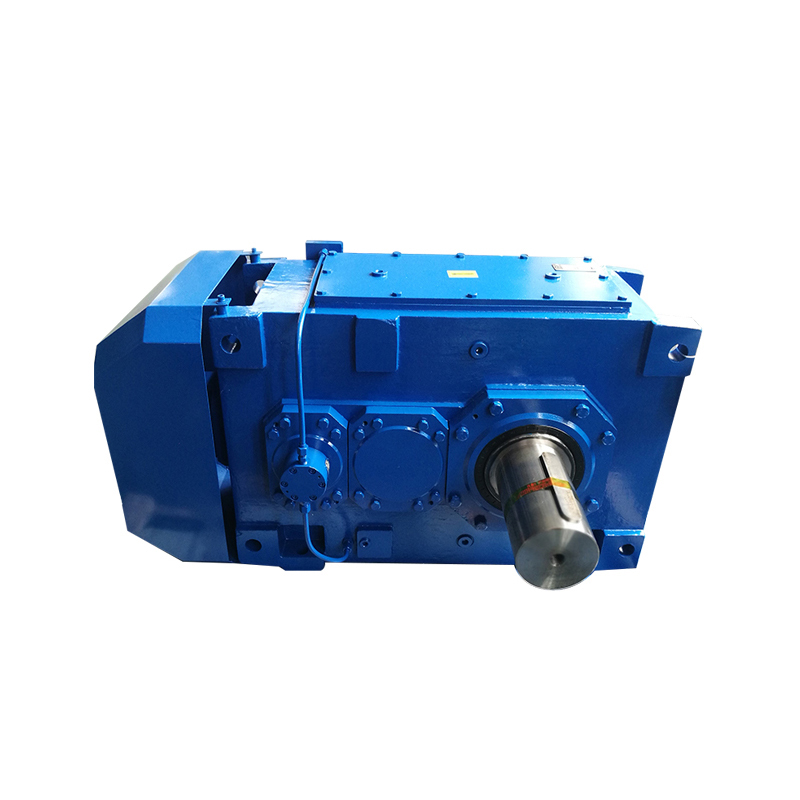

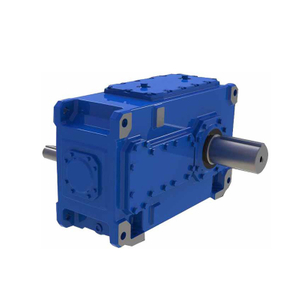

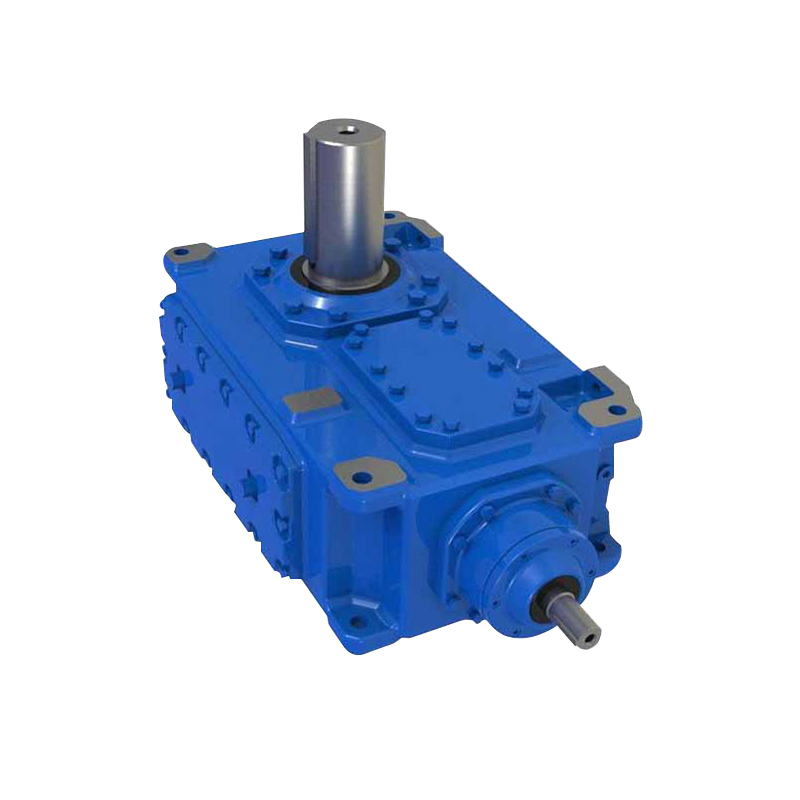

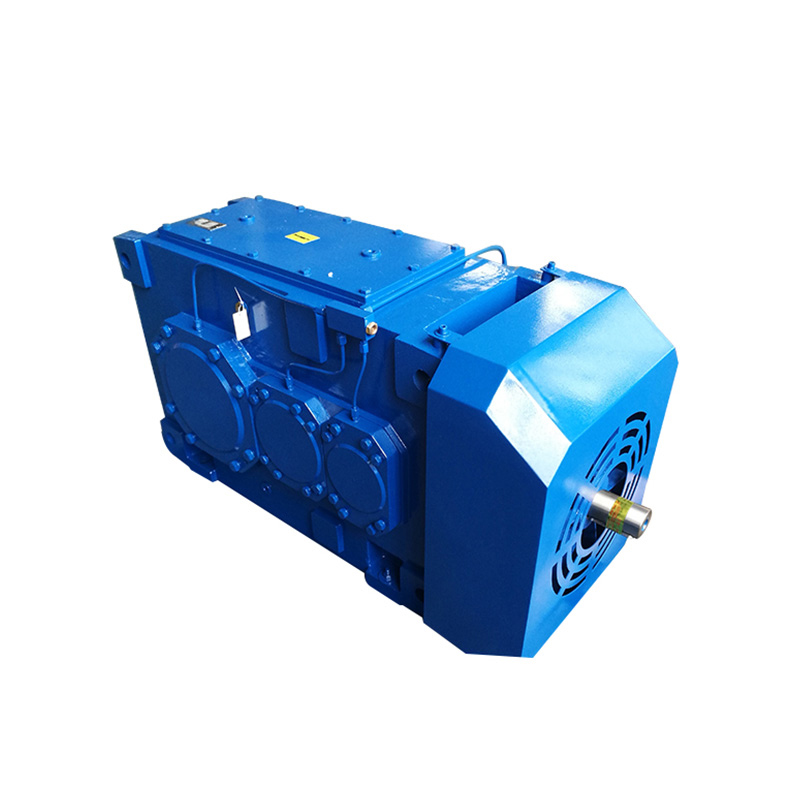

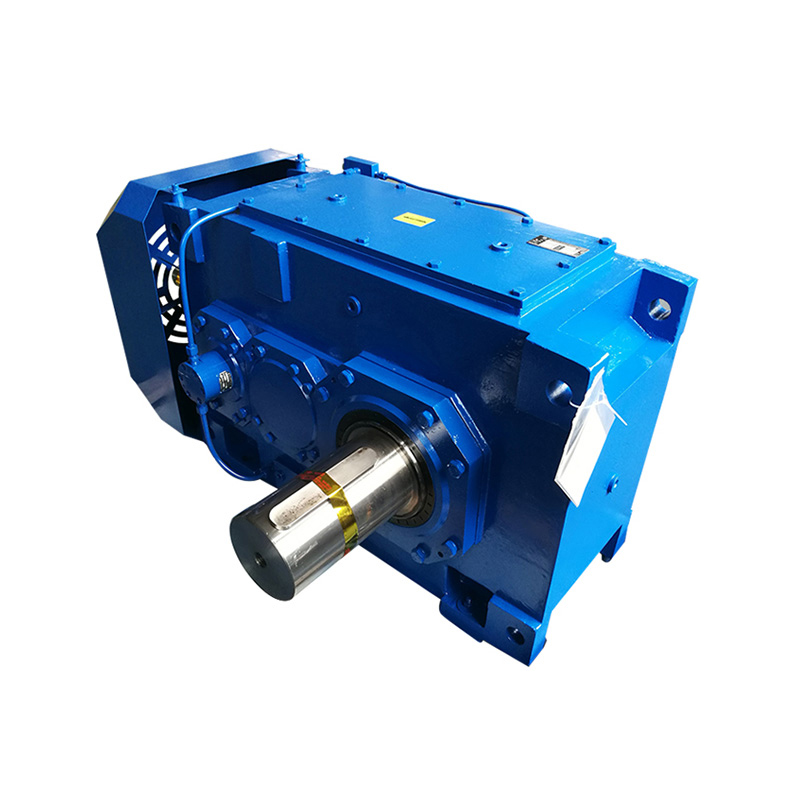

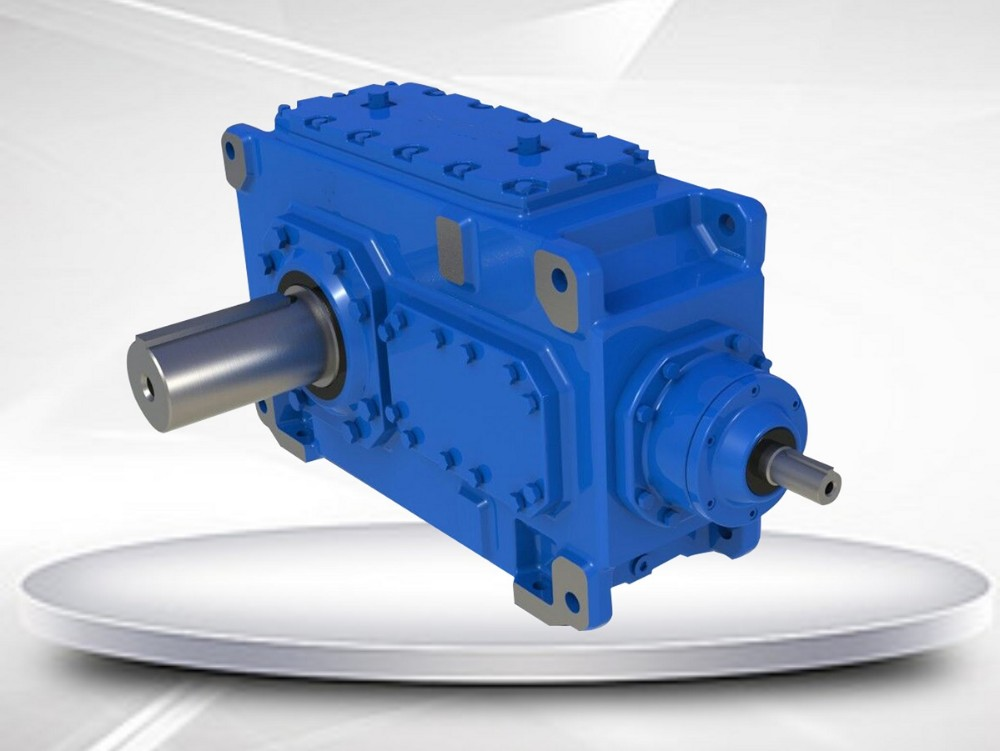

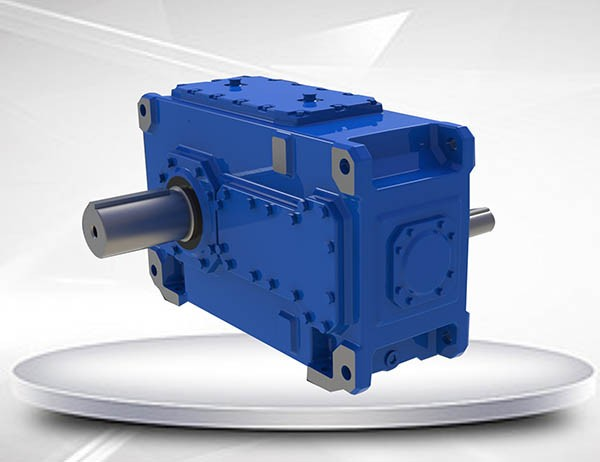

Overview of H/B series standard industrial gearbox products
1. H/B series standard industrial gearboxes adopt general design scheme, which can be transformed into industry-specific gearboxes according to customer requirements.
2. Realize parallel axis, straight axis, vertical and horizontal universal box, reduce the types of parts, increase the specifications and models.
3. Adopting sound-absorbing box structure, large box surface area and large fan, cylindrical gear and spiral bevel gear all adopt advanced gear grinding technology to raise the temperature of the whole machine.
The noise is reduced, the reliability of operation is improved, and the transmission power is increased.
4. Input mode: motor connection flange, shaft input.
5. Output mode: solid axle with flat key, hollow axle with flat key, hollow axle with expansion disk, hollow axle with spline connection, solid axle with spline connection and
The solid shaft of flange connection.
6. Installation methods: horizontal, vertical, swinging base and torsion arm.
7. H/B series products have 3-26 specifications, the speed ratio is 1.25-450 and the speed ratio is 1-4 grades, and the combination of R, K and S series can get a larger speed ratio.
