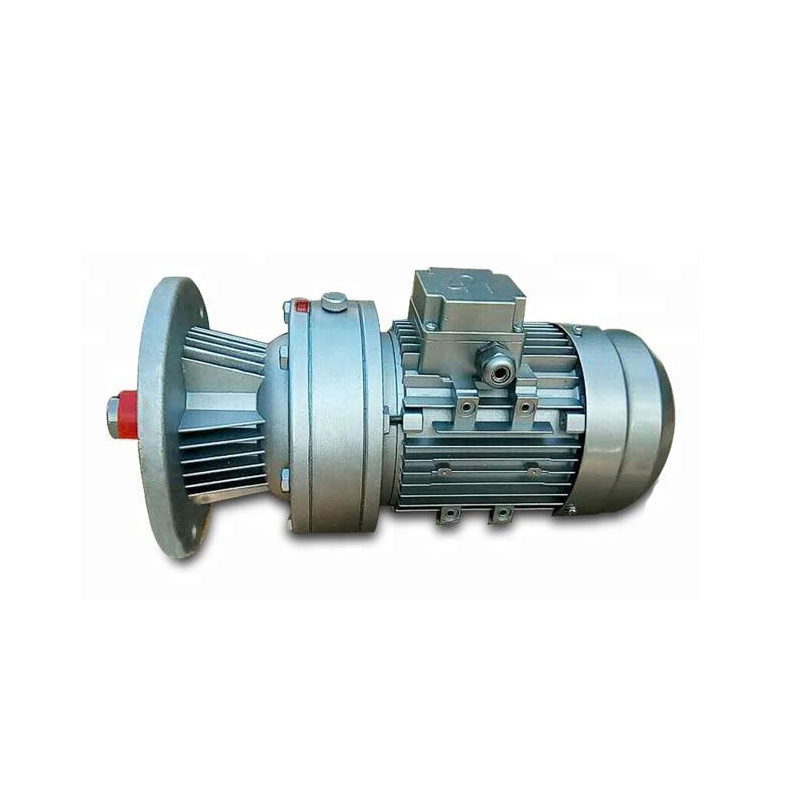

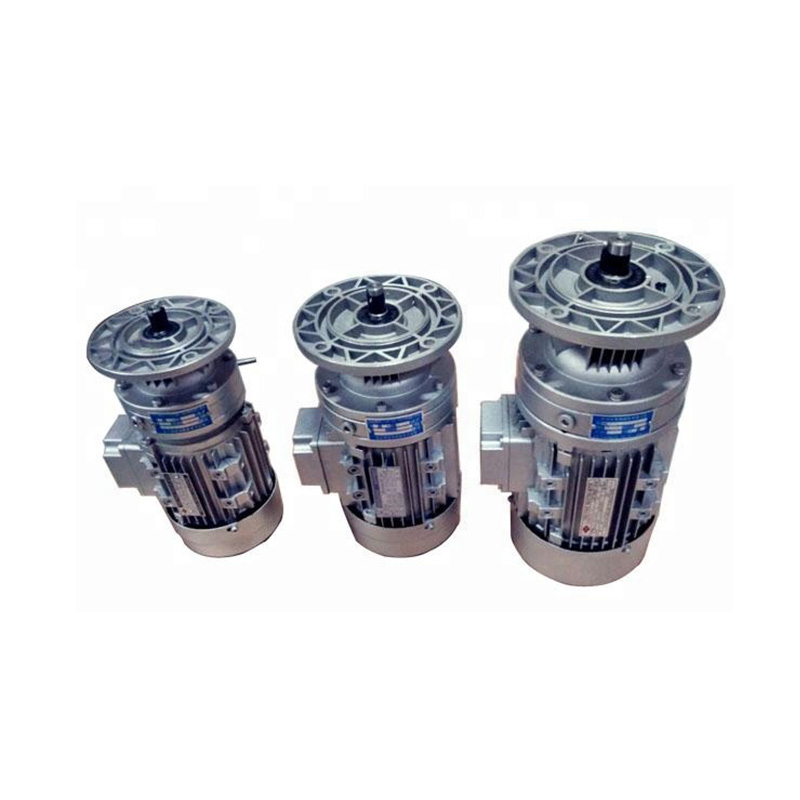

WB series miniature cycloidal pin wheel reducer
Product Description:
1. WB series miniature cycloidal pin wheel reducer adopts aluminum alloy die-casting shell, which makes the appearance more beautiful, the volume smaller and the weight lighter.
2. WB series of miniature cycloidal pin wheel reducers have been injected with grease when they leave the factory, which makes it convenient for users to lubricate to a large extent.
And the use of grease is not easy to leak oil, users can use any direction and Angle according to their needs.
3. WB series micro cycloid pin wheel reducer to the bottom horizontal and vertical flange are aluminium alloy, so high in the center of the horizontal installation should be calibrated, vertical should be calibrated output shaft, the installed position of flange plate alignment.
4. When installing coupling, belt wheel, sprocket and other parts on the output shaft, it is not allowed to hammer in, and screw in the screw hole at the outer end of the output shaft, and press into the coupling.
Technical parameters: xuzhou woerisen machinery
Work rate: 60W ~ 3KW
Torque: 25N•m ~ 250N•m
Gear ratio:
Single stage: 11-87
Two stage: 121-5133
Application industry:
High degree of modularization, standardization, less parts specifications and models
Power, torque and speed ratio cover a wide range
Our products are used in electric power, coal, cement, metallurgy, port, agriculture, military industry, ship, lifting, environmental protection, stage, logistics, textile, paper making, light industry, plastics and other fields.
