Product Introduction：

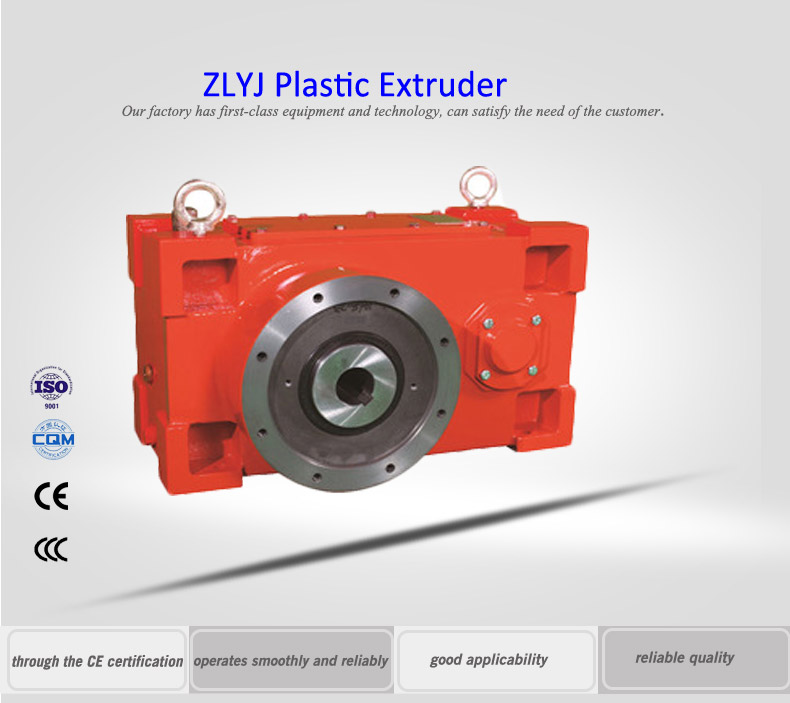

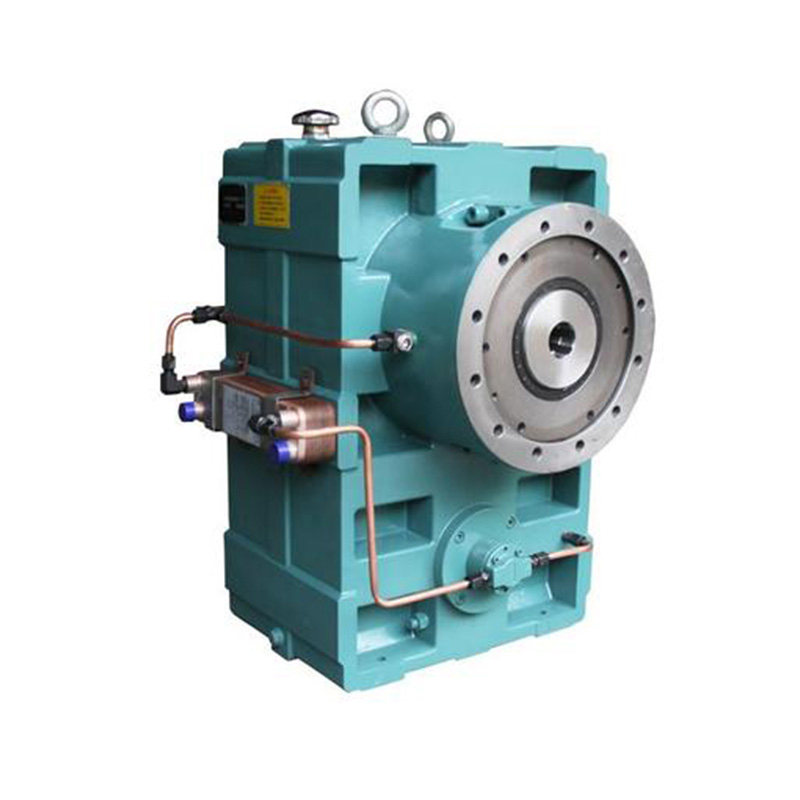

ZLYJ series Reduction Gearbox (speed reducer) is a transmission part for most single screw extrusion line, wihch also possesses high precision hard gear surface and thrust block designed. Designed with standard ZBJ19009-88, it combines well with most of machines from different suppliers. Also the gear and axis parts are made of high strength alloy steel with surface hardness HRC54~62. In the front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working.
Applied Circumstance:
1. All kind of extrusion & blowing machinery
2. High speed shaft rotation Speed <1500RPM
3. Working Environment Temp. -40~45°C, with temperature below 0°C, should pre-heat lubrication oil to above 0°C
Major Technical Index:
1. Output Speed: 16-100 RPM
2. Output Torque: Max.4300 Nm
3. Motor Power: 5.5-200 Kw
Selection of Gearbox:
1. Select speed ratio
e.g. input speed n1=1000rpm, output speed n2=70rpm, ratio i=n1/n2=14.28, should select ratio 14
2. Select model type according to input power
e.g. input power P=26kw, after checking form, 29kw>26kw, most ecomonic should be ZLYJ200
3. Select assemble type
as per actual use, select horizontal or vertical type
4. Calculate axial thrust Fa=π*Ds²*Ps/(4*1000)
e.g. Screw diameter Ds=75mm, Screw pressure Ps=26MPa
Fa=π*Ds²*Ps/(4*1000)=114.8kN
187kN>114.8kN, ZLYJ200 can bear the axial thrust and economic to select
5. Confirm connection size
6. Confirm cooling type
