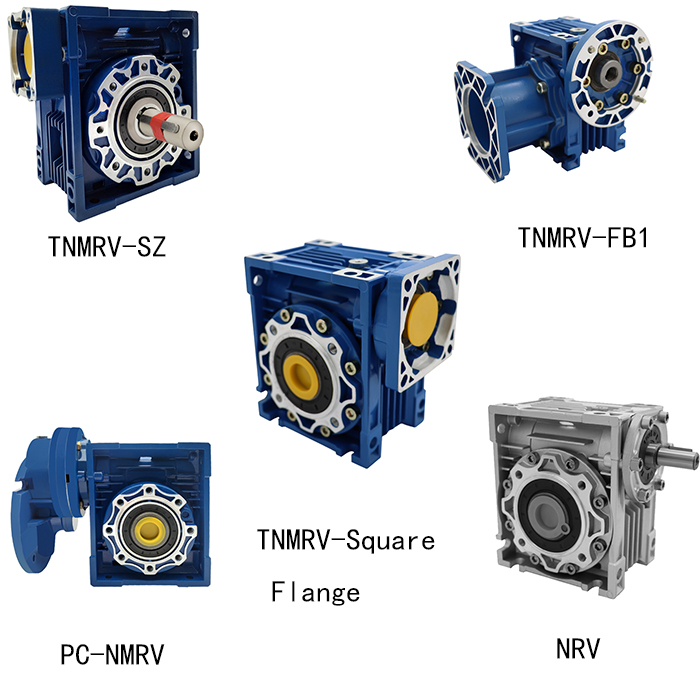

RV Series Worm Gear Motor
Features and application scenarios of RV series worm gear reducer

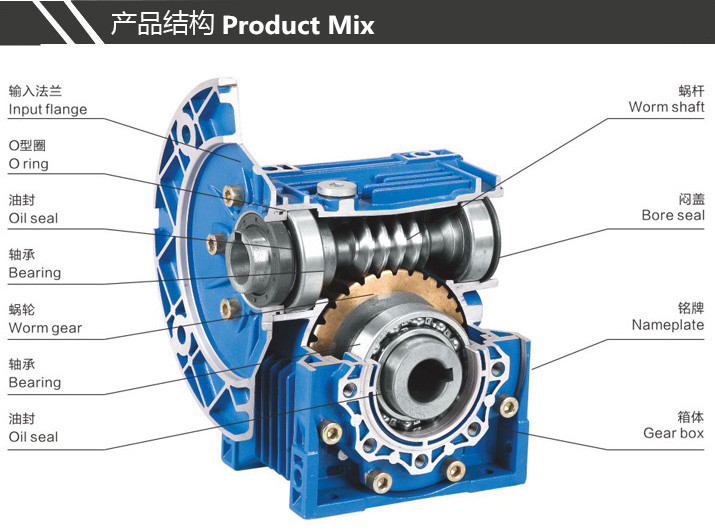

RV reducer is based on the parameters of cylindrical worm gear and worm gear in line with the national standard GB10085-88, absorbs the most advanced technology at home and abroad, and has a unique and novel "square box" shape structure. It has the following advantages:
1.The mechanical structure is compact, the volume is light and the shape is small and efficient;
2.Good heat exchange performance and fast heat dissipation;
3.Easy to install, flexible and light, superior performance, easy to maintain and repair;
4.Smooth operation, low noise and durable;
5. Strong applicability, high safety and reliability.
Notice
1. The worm speed of the RV worm gear reducer cannot exceed 1500r/min.
2. The working environment temperature is -40℃-+40℃. When the working environment temperature is lower than 0℃, the lubricating oil must be heated to above 0℃ before starting. When the working environment temperature is higher than 40℃, cooling measures must be taken.
3. The input shaft of the worm gear reducer can rotate forward and reverse. Easy to use;
4. The motor matched with the NMRV worm gear reducer must be suitable for working in a low temperature environment;
5. The power of the motor must meet the torque requirements when starting at a low temperature;
6. Before putting it into use, the viscosity of the lubricating oil must be
7. When using the NMRV worm gear reducer for the first time, replace the lubricating oil after 150-400 hours of operation, and replace it later The oil worm gear reducer cycle is less than or equal to 4000 hours. 2 Regularly check the quantity and quality of the oil, keep enough lubricating oil, and replace the oil mixed with impurities or deteriorated in time.
